Gel Card Centrifuge CD40-WS
Gel Card Centrifuge CD40-WS

This machine is specially designed for lymphatic ball HLA, red blood cells/SERO cleaning, microcolumn gel, 12/24 card rotor, easy to pick up and install, easy to use.

86-15688870591
cedric@cedriccn.com
Description

组 3

Product Features:

·LCD color large screen display, speed, centrifugal force (automatic counting), time, etc. can be independently set and displayed on the same screen.

·Special damping and vibration damping, unique cold air duct system, low vibration, low sound and low temperature rise.

·Electronic safety door locks, mechanical emergency switches, high-quality steel body, stainless steel inner cavity, multi-layer steel safety protection,

·It has six protections, including overspeed, imbalance, misoperation, overcurrent, overvoltage, and door lock.

·It is equipped with a speed test window to facilitate speed detection and calibration.

·Use carbon brushless DC frequency converter motor without dust pollution.


Product specification:

Model

CD40-WS

Max. speed

4000r/min

Max. RCF

2120×g

Speed Precision

±10 r/min

Max. capacity

24 Card

Display

LCD

Noise

≤55dB(A)

Timer range

199min

Power Supply

220V 50Hz

External Size(L*W*H)

360*440*260mm

Net Weight

18kg

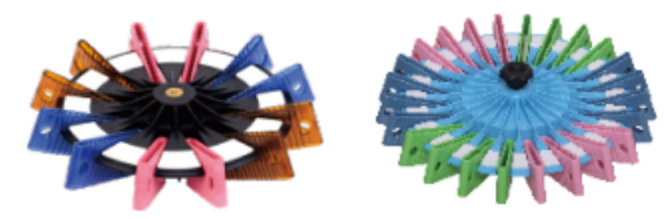

Rotor:

Rotor type

No.

Capacity

Max Speed

Max RCF

Microcolumn Gel

No.1

12x6

4000r/min

1790×g

Microcolumn Gel

No.2

24x6

4000r/min

2120×g
