Refrigerator and Freezer CD-25V528
Refrigerator and Freezer CD-25V528

CD-25V528 medical refrigeration and freezer, dual systems with independent temperature control, refrigeration 2-8℃/freezing - 10~-25℃, double door double lock design, equipped with temperature detection holes, has passed multiple medical and ISO certifications, and is suitable for laboratory reagent storage.

86-15688870591
cedric@cedriccn.com
Description



Product Features:

·Medical Device Manufacturing License;

·Medical Device Registration Certificate;

·ISO 14001 Environmental Management System Certification;

·ISO 9001 Quality Management System Certification;

·ISO 13485 Medical Device Quality Management System Certification;

·ISO 45001 Occupational Health and Safety Management System Certification.

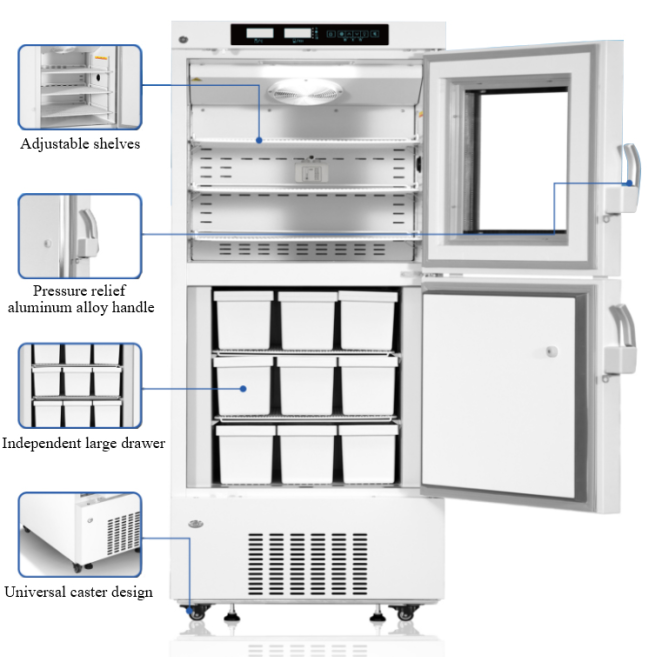

·Dual LED digital displays can separately show temperature data and various alarm information for the upper and lower compartments;

·The refrigerator and freezer compartments each use independent refrigeration systems with dual displays and dual controls;

·The freezer compartment comes standard with an aluminum alloy door handle with a pressure relief function and features a 9-drawer design;

·Two detection holes are standard on the right side of the cabinet for easy installation of a temperature recorder to monitor temperature changes in each compartment;

·Both the refrigerator and freezer compartments are equipped with concealed locks and double locks; they also feature independent padlock holes for attaching padlocks to ensure the safety of items inside.


Product specification:

Model

CD-25V528

Volume

Refrigerator compartment volume: 273L
Freezer compartment volume: 255L

Net Weight

174kg

Rated Power

431W

Power Consumption

5.56kW.H/24h

Climate Type

SN/N

Cooling Method

Refrigerator compartment: Air-cooled;
Freezer compartment: Direct-cooled

Temperature Range

Refrigerator compartment: 2°C~8°C;
Freezer compartment: -10°C~-25°C

External Dimensions (W*D*H)

900*818*1875(mm)

Upper Refrigerator Compartment (W*D*H)

765*640*635(mm)

Lower Freezer Compartment (W*D*H)

651*636*635(mm)

External Materials

Painted steel sheet

Internal Materials

Painted steel sheet

Inspection Hole

2 units; 1 unit each for the refrigerator and freezer compartments

Door

2 exterior doors

Insulation Layer

CFC-free high-density polyurethane foam
