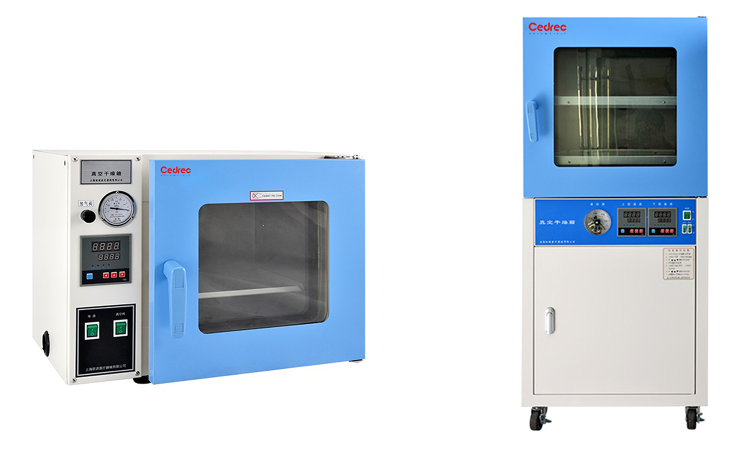

The standard CDZK and built-in heating CDZK-Z are two major series, featuring a stainless steel inner liner, silicone rubber sealing door, and a vacuum degree of <133Pa. Equipped with PID digital temperature control, it supports timing and power-off memory, with a maximum temperature control of 250℃. Four capacities are available, and the Z model features layered independent heating. Optional accessories include an LCD controller, communication interface, and printer, with 220V power supply.
86-15688870591
sales1@cedriccn.com
Product Features:
·Outer box material: cold-rolled steel plate surface sprayed with plastic; inner material: SUS stainless steel plate.
·Integral molded silicone rubber door seal ring, with good air tightness.
·Tempered bulletproof double-glazed door.
·CDZK-Z type heaters are located on the shelves inside the box and are temperature controlled respectively. They have the characteristics of short heating time and good temperature uniformity on the same level.
·LED digital tube display P.I.D temperature controller, precise temperature control; continuous operation or scheduled operation: 0 ~ 9999 min;It has the function of parameter memorization, and the operation will be resumed automatically when the call comes.
·(Optional) Independent external temperature protection device.
·(Optional) LCD temperature controller.
·(Optional) LCD temperature controller + RS485 communication serial port.
·(Optional) LCD temperature controller + Micro Pin Printer.
·(Optional) RS485 to USB adapter.
Product Specification:
Model | CDZK-25 | CDZK-55 | CDZK-Z-90 | CDZK-Z-210 |
Temperature range | RT+10~200℃ | RT+10~250℃ | RT+10~200℃ | |
Temperature fluctuation | ±1℃ | |||
Vacuum degree | < 133 Pa | |||
Vacuum display | Pointer vacuum gauge | Pointer differential pressure vacuum gauge, adjustable vacuum degree | ||
Controller | Manual control | Automatic differential pressure control | ||
Vacuum method | Vacuum pump (Self-provide) | Vacuum pump | ||
Internal size (mm) | 296*300*270 | 416*370*346 | 450*450*450 | 556*600*640 |
Internal volume (L) | 23 | 53 | 91 | 213 |
External size (mm) | 590*492*468 | 710*562*544 | 611*641*1398 | 721*794*1638 |
Packing size(Carton, mm) | 690*630*620 | 810*680*690 | 730*730*1570 | 960*830*200 |
Weight(kg) | 65 | 79 | 171 | 245 |
Shelves | Aluminum shelf × 1 | Aluminum shelf × 2 | Fixed electrothermal aluminum shelf × 2 | Fixed electrothermal aluminum shelf × 3 |
Power (W) | 500 | 1400 | 1600 | 2200 |
Power supply | 1Ø 220V 50Hz | |||
