Designed for rapidly homogenize, emulsify,suspend and disrupt biological samples like tissue of animal, bacteria, yeast, plant samples, etc. in liquids. Ideal for samples from 0.1mL to 250mL depending on shaft chosen.
86-15688870591
cedric@cedriccn.com
Product Features:
• Portable, lightweight with ergonomic design ideal for manual operations.
• Processing volumes from 0.1-50mL or 1-250mL.
• Variable speed from 8,000 to 32,000 rpm.
• 316L stainless steel shafts are fully autoclavable.
• Interchangeable shafts for easy dismantling and cleaning.
Product Specifications:
Model | CD-160 |
Speed range | 8000-32000rpm |
Max linear velocity | 6.3、10、14 m/sec |
Speed level | 10 stage |

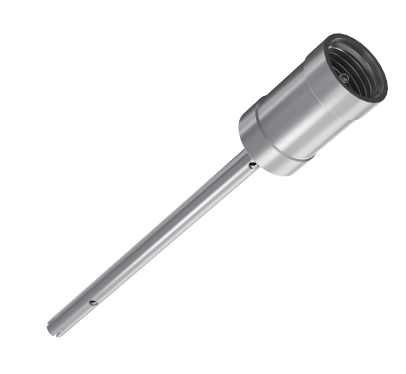

Working volume [H2O] | 0.1-50mL (Dispersing shaft DS-160/5) |
1-150mL (Dispersing shaft DS-160/7) | |
1-250mL (Dispersing shaft DS-160/10) | |
Max. viscosity | 5,000mPas |
Material of Dispersing Shaft | SS 316L stainless steel, PTFE |
Noise Level | 72 dB(A) |
Protection class | IP20 |
Voltage,Frequency | 110-120V/60Hz 220-240V/50-60Hz |
Power | 160W |
Motor Type | AC carbon brush motor |
Dimension (WxDxH) | 45*55*190mm |
Weight | 0.54 kg |
Permissible ambient temperature and humidity | 0-40℃, 85%RH |
