Muffle Furnace
Muffle Furnace

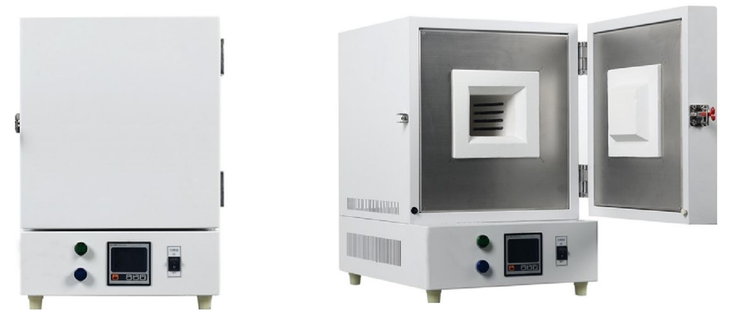

The ceramic fiber muffle furnace is a periodic operation electric furnace that can be used in laboratories of industrial and mining enterprises, scientific research institutions, and other units for heating during chemical analysis, physical measurement, and general heat treatment of small steel parts.

86-15688870591
cedric@cedriccn.com
Description


Product Features:

·The inner liner is made of ceramic fiber, making the equipment lightweight and providing excellent heat insulation.

·The intelligent LCD LED controller offers excellent temperature control. It employs a microcomputer P.I.D temperature controller with over-temperature deviation protection, digital display, and timer function, ensuring stable and reliable temperature control.

·The furnace body is made of ceramic fiber material, which is characterized by its excellent heat insulation performance and lightweight nature. The insulation layer uses ceramic fiber cotton, significantly improving the heating rate and reducing heat consumption, resulting in excellent heat insulation and a low outer shell temperature.

·Features include over-temperature alarm, timed shutdown, power-on recovery, parameter encryption, and temperature correction.

·It has a power-off recovery function; after a sudden power outage and subsequent restoration, the equipment can automatically resume operation according to the original settings.


Product Specifications:

Model

CD2.5-10A

CD4-10A

CD4-10AX

CD8-10A

CD8-10AX

CD2.5-12A

CD4-12A

CD4-12AX

CD10-12A

CD10-12AX

Temperature

10A:RT+501000℃
12A:RT+501200℃

Volume

2L

7.2L

12L

16L

36L

Inner Tank Dimensions

120*200*80

200*300*120

200*300*200

250*400*160

300*400*300

External Dimensions

480*480*590

460*630*500

560*480*590

580*720*610

630*720*750

Display Method

LCD display

Temperature Resolution

1℃

Temperature Fluctuation

±2℃

Heating Element

Nichrome wire

Heating Method

Rear sensor + heating on the left, right and top sides

Power Supply Voltage

AC220V 50HZ

AC380V 50HZ

Input Power

2.5KW

4KW

4KW

8KW

8KW

Optional Equipment

Independent over-temperature protector, chimney, programmable controller, touch screen, printer, RS485 interface, mobile phone SMS alarm reminder and other auxiliary functions
