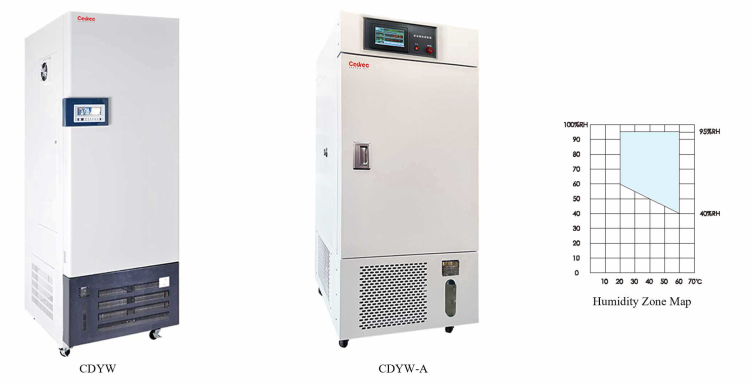

Stability Test Chamber  CDYW CDYW-A
Stability Test Chamber CDYW CDYW-A

The stability test chambers are divided into two major series: CDYW and CDYW-A. The outer shell is made of spray-painted cold-rolled steel plates, while the inner liner is constructed from SUS304 stainless steel. Equipped with an intelligent PID temperature and humidity controller, they utilize fluorine-free and environmentally friendly refrigerants. Additionally, they feature built-in humidification, ventilation and circulation systems, as well as adjustable lighting components.

86-15688870591
sales1@cedriccn.com
Description


Product Features:

·Outer box material: cold-rolled steel plate surface sprayed with plastic; inner material: SUS304 stainless steel plate.

·The inner box is equipped with a fan to form a micro air circulation, improve the temperature uniformity inside the box.

·Microcomputer intelligent PID temperature and humidity controller, accurate temperature control; has parameter memory function, automatically resumes operation when a call comes.

·The inner box is designed with a round arc structure, easy to clean.

·Pull-out movable shelves with adjustable spacing.

·Fluorine-free and environmentally friendly refrigerant.

·Equipped with a built-in water tank and an automatic water replenishment interface.

·When there is no water for humidification, the power supply of the humidifier is automatically disconnected.

·CDYW comes standard with a micro thermal printer.

·The temperature and humidity controller equipped with CDYW-A: the operation interface can be displayed in Chinese and English; the temperature and humidity real-time curve display and the 600-day historical data query function;600-day historical data USB export function; Ethernet-based remote monitoring function.

·Type A comes standard with ø35mm test hole

·(Optional) Independent external temperature protection device.

·(Optional) Independent external temperature and humidity SMS alarm module (data traffic card not included), with mobile APP query function.

·(CDYW optional) USB data storage.

·(CDYW optional) Micro dot matrix printer.

·(CDYW-A optional) Micro thermal printer or micro dot matrix printer.


Product Specification:

Model

CDYW-250

CDYW-300

CDYW-400

CDYW-500

Temperature range

0℃ ~ +65℃

Humidity range

40% ~ 95% RH

Temperature uniformity

±2℃

Temperature fluctuation

±0.5℃

Humidity fluctuation

±3%RH

Temperature & Humidity display accuracy

0.1℃ / 0.1%RH

Temperature & Humidity control accuracy

±0.1℃ / ±0.1%RH

Humidification method

Internal electric humidification tray

Illuminance

Single face, 6000LX

Adjustable illuminance

5 levels

Internal circulation method

Breeze stirring

Security alarm

Overtemperature & Undertemperature alarm, Temperature & Humidity probe damage alarm

Controller

LCD display, P.I.D

Internal size (W*D*H, mm)

470*449*1178

490*464*1278

560*600*1198

660*650*1198

Internal volume (L)

248

290

402

514

External size (W*D*H, mm)

672*892*1825

691*907*1925

764*1032*1860

864*1082*1860

Packing size(Carton, mm)

980*770*1980

990*790*2110

1120*870*2030

1200*1080*1990

Weight(kg)

185

195

228

297

Shelves

2

2

2

2

Power (W)

2400

2900

3400

3900

Power supply

220V 50Hz


Model

CDYW-120A

CDYW-250A

CDYW-500A

Temperature range

-20℃ ~ +65℃

Humidity range

40% ~ 95% RH

Temperature uniformity

±2℃

Temperature fluctuation

±0.5℃

Humidity fluctuation

±3%RH

Temperature & Humidity display accuracy

0.1℃ / 0.1%RH

Temperature & Humidity control accuracy

±0.1℃ / ±0.1%RH

Humidification method

Internal electric humidification tray

Illuminance

Single face, 4500LX

Adjustable illuminance

4 levels

Internal circulation method

Breeze stirring

Security alarm

Overtemperature & Undertemperature alarm, Temperature & Humidity probe damage alarm

Controller

Touch screen, P.I.D

Internal size (W*D*H, mm)

550*450*700

600*600*800

800*710*910

Internal volume (L)

173

288

516

External size (W*D*H, mm)

700*842*1585

800*992*1685

1000*1072*1795

Shelves

2

2

2

Power (W)

2100

2600

3500

Power supply

220V 50Hz
