This series of pumps is suitable for extracting air and other general gases. The advantage of using a forced oil inlet device with an oil pump is that it can still operate continuously when the inlet pressure is less than 1.33X10. Small size, light weight, and low noise. Equipped with a gas ballast valve, it can extract a small amount of water vapor.
86-15688870591
cedric@cedriccn.com
Product Specification:

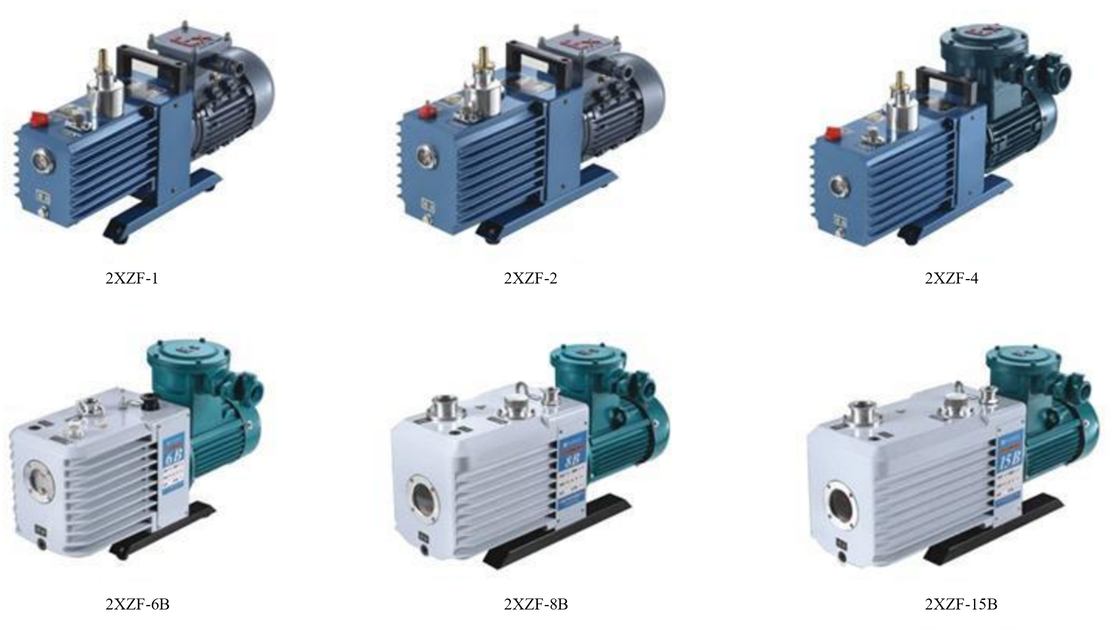

Model | 2XZF-0.5 | 2XZF-1 | 2XZF-2 | 2XZF-4 | 2XZF-6B | 2XZF-8B | 2XZF-15B | 2XZF-25B | |
Pumping Speed (L/S, m³/h) | 0.5(1.8) | 1(3.6) | 2(7.2) | 4(14.4) | 6(21.6) | 8(28.8) | 15(54) | 25(90) | |
Pressure Pa | Partial Pressure | ≤6x0.01 | ≤6x0.01 | ≤6x0.01 | ≤4×0.01 | ≤4×0.01 | ≤4x0.01 | ≤4×0.01 | ≤4×0.01 |
Full Pressure | ≤1.33 | ≤1.33 | ≤1.33 | ≤1.33 | ≤1.33 | ≤1.33 | ≤1.33 | ≤1.33 | |
Speed (r/min) | 1400 | 1400 | 1400 | 1400 | 1400 | 1400 | 1400 | 1400 | |
Power | 0.18 | 0.25 | 0.37 | 0.55 | 0.75 | 1.5 | 1.5 | 3 | |
Inlet diameter | KF-16 | KF-16 | KF-25 | KF-25 | KF-25 | KF-40 | KF-40 | KF-40 | |
Capacity | 0.5 | 0.8 | 1 | 1.2 | 1-1.2 | 2.3-2.5 | 2.8-3.3 | 3.8-4.4 | |
Overall dimensions | 463*164*236 | 485*164*236 | 487*164*244 | 550*245*300 | 651*266*324 | 705*287*378 | 770*287*378 | 780*300*400 | |
