Water Bath  CD-H2S/CD-H4S/CD-H6S
Water Bath CD-H2S/CD-H4S/CD-H6S

The digital display constant temperature water bath is widely used for drying, concentration, distillation, and immersion of chemical reagents, pharmaceuticals, and biological products.

86-15688870591
cedric@cedriccn.com
Description

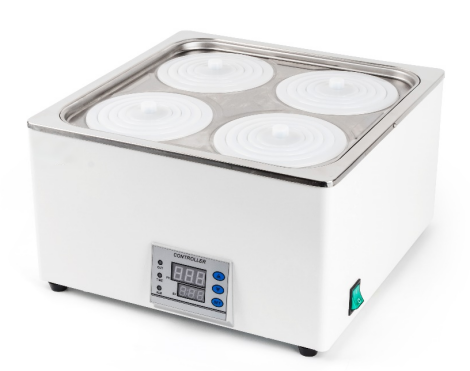

CD-H4S

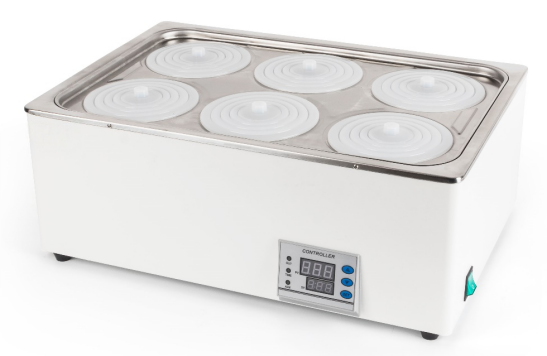

CD-H6S



Product Features:

·The body is made of high-quality cold-rolled steel plate, molded and pressed with rounded corners, seamless welding, and coated with paint for strong rust resistance.

·The working chamber is made of genuine 304 stainless steel with rounded corners, smooth and easy to clean.

·Uses Invar and brass tubes as heat sensing elements, installed under the partition in the chamber, directly immersed in water for fast heat transfer and high sensitivity.

·The heating tube is made of U-shaped steel tube, sintered magnesium oxide, and heating wire, directly immersed in water for minimal heat loss.

·The water outlet pipe is retractable, aesthetically pleasing, convenient, and durable.

·Temperature control uses microcomputer intelligent digital technology with industrial PID self-tuning and LED window display for precise temperature control.

·High precision, strong anti-interference capability, and user-friendly operation.

·The lid is made of high-temperature-resistant silicone rings, with a maximum aperture of 12 cm, four rings per hole, providing good sealing and suitability for different sizes of beakers.


Product Specification:

Model

CD-H2S

CD-H4S

CD-H6S

Capacity

6.8L

13L

20L

Number of Holes

2

4

6

Dry Burn Protection

Supported

Heating Power

600 W

800W

1000 W

Temperature Control Range

Room temperature - 100℃

Temperature Resolution

0.1℃

Temperature Control Accuracy

±0.5℃

Heating Rate

1℃/min

Power Supply

AC220V 50Hz

Inner Chamber Dimensions

310*160*130mm

310*310*130mm

310*470*130mm

Overall Dimensions

350*200*200mm

350*350*200mm

510*350*200mm

Packing size

410*270*265mm

410*410*260mm

570*405*270mm

Weight

4.5kg

6kg

8kg
