External size(W*D*H)

1200*800*2120mm

1500*800*2120mm

1800*800*2120mm

Internal size(W*D*H)

1000*700*600mm

1300*700*600mm

1600*700*600mm

Purification efficiency

Level 100 (U.S. federal standard 209E) The 100 stage(America federal standard 209E)

Average air velocity

0.25-0.5m/s

Front inflow air

≥0.5m/s

Power

0.8KW

Average number of bacterial colonies

≤ 0.5 per dish hour (A/dish/hour)

Noise

≤65dB（A）

Vibration/half peak amplitude

≤3μm（X·Y·Z）

Power supply

220V 50HZ

Air intake filter size

Filter size(L*W*H)

980*520*50mm

1280*520*50mm

1580*520*50mm

Size of air vents and filters

Filter size(L*W*H)

480*380*50mm

780*380*50mm

1080*380*50mm

Lighting lamp (LED)/

sterilizing lamp (T5 integrated)

Fluorescent lamp/UV lamp

21W×②/21W×①

28W×②/21W×①

28W×②/21W×①

Air outlet direction Wind direction

Top to Top φ 300mm

filter efficiency Air tightness

99.99≤E≤99.999

illumination

≥700LX

Packing size

1300*900*2200mm;

530*930*730mm

1600*900*2200mm;

530*930*730mm

2000*900*2200mm;

530*930*730mm

Weight

160kg/280kg;30kg

180kg/290kg;30kg

200kg/300kg;30kg

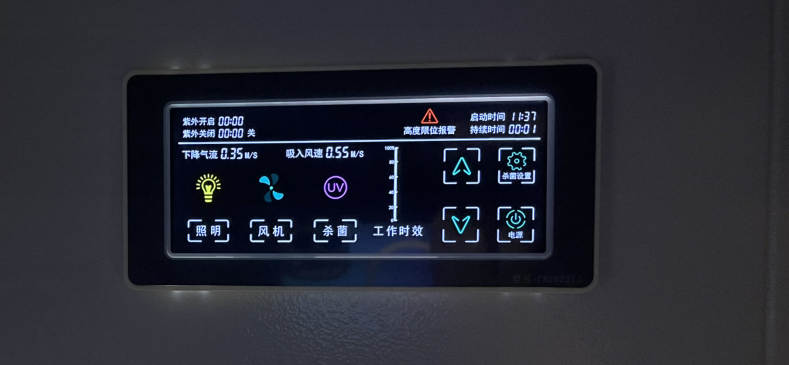

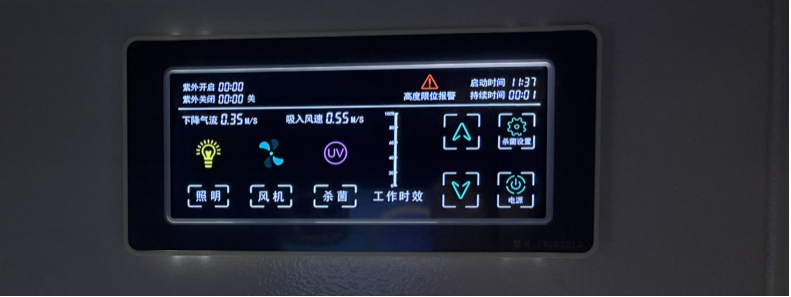

2. A new LED LCD panel is configured to display the instrument start time and instrument running time; it can also display the descending airflow and suction wind speed; it is equipped with high efficiency filter replacement reminder function and UV lamp pre-arrangement and timing open and close function.

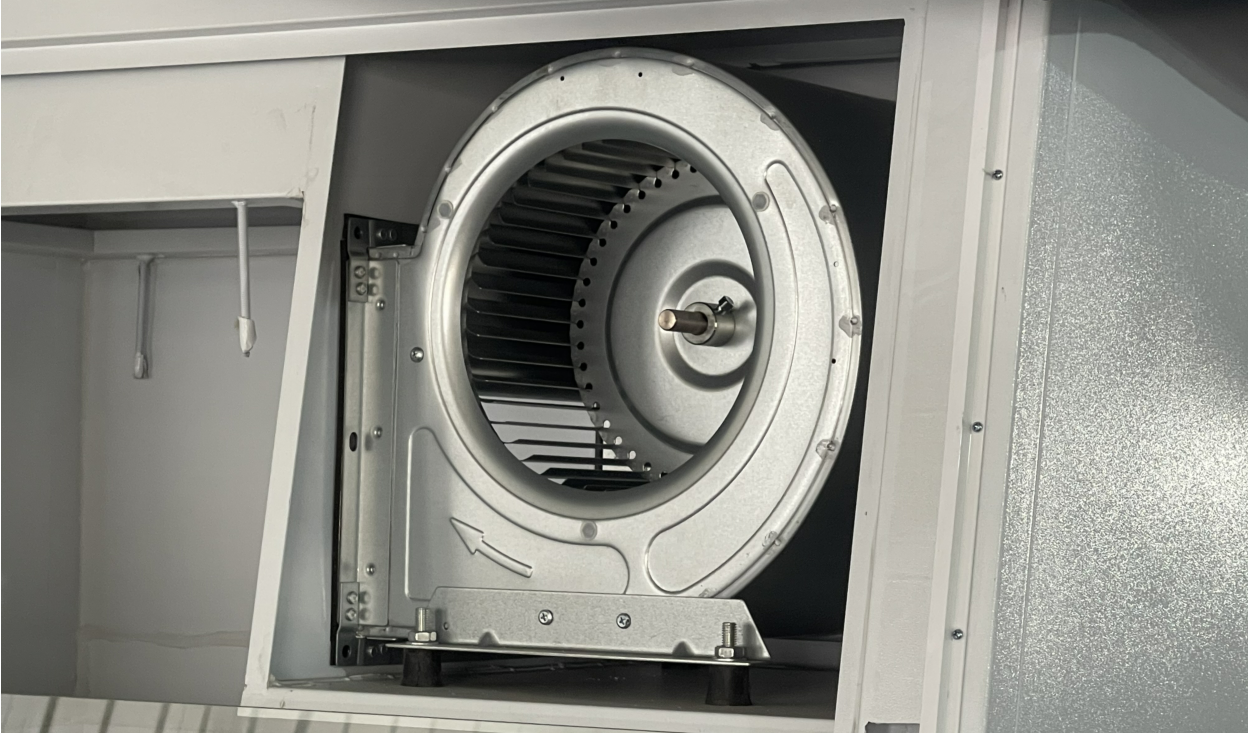

3. Configure the central air conditioning fan of Yilida listed in China to ensure stable air volume of the instrument.

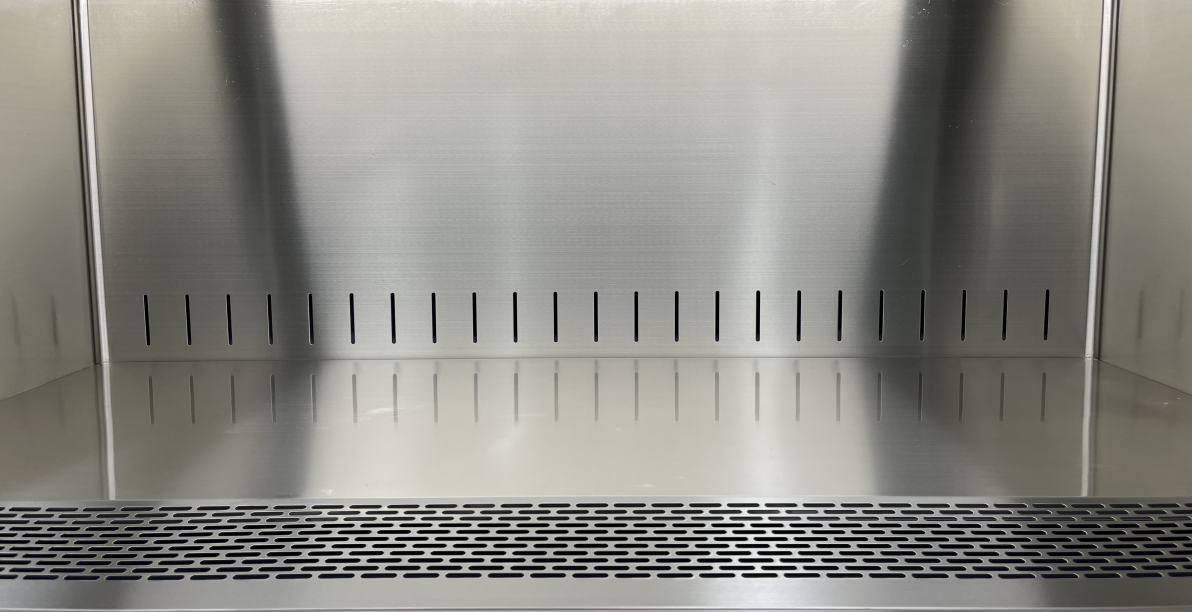

4. The movable table and the all-stainless-iron inner cavity are designed with U-shaped surrounding design, which ensures that the table surface of the experimental area is beautiful, clean and bright, and is not easy to rust or scratch; the table surface is made into an inclined slope, which can ensure the normal inhalation speed of the instrument without using the hand support, thus solving the arm fatigue of the operator.

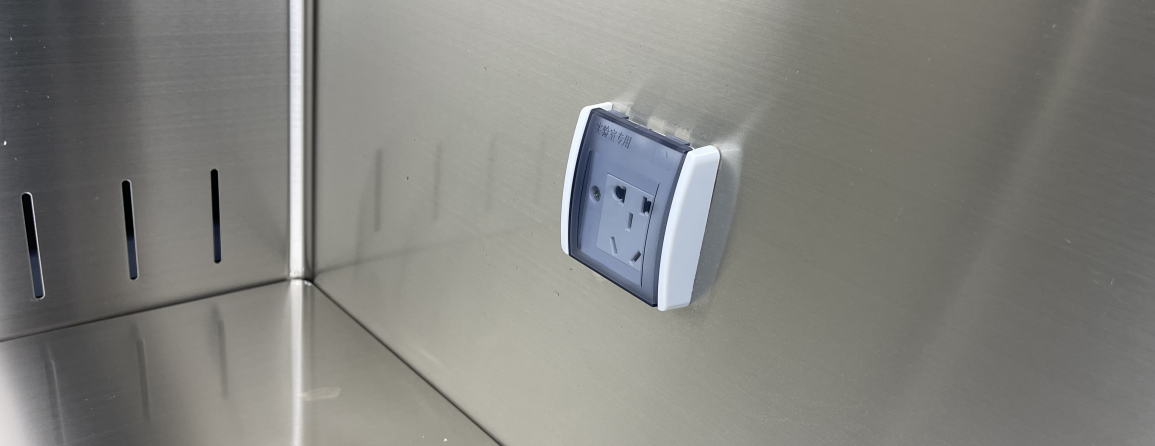

5. A 220V five-hole socket is configured in the operation area to meet the electricity demand of experimenters.

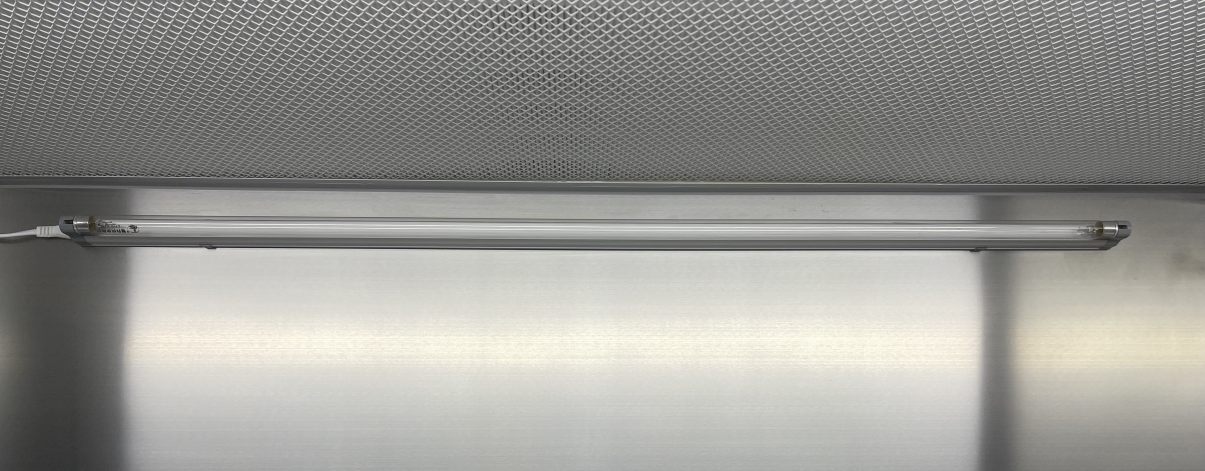

6. The integrated LED lamp frame and UV lamp frame are configured in the operation area to facilitate the later insertion, removal and replacement by experimenters.

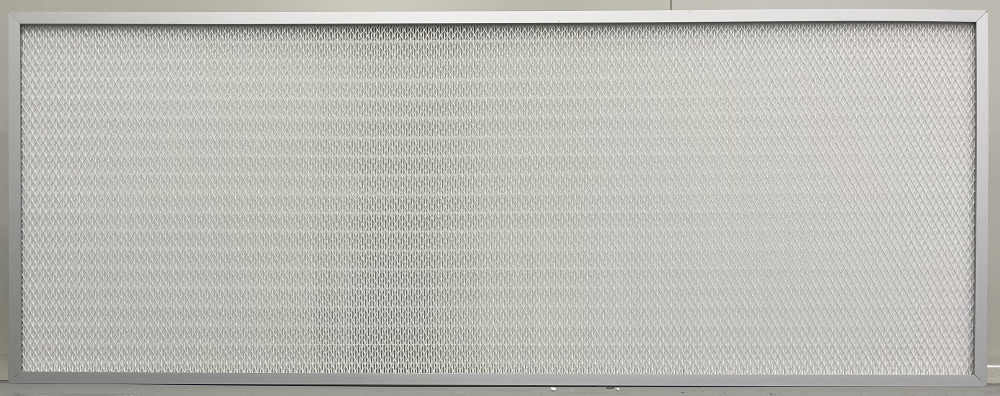

7. The ultra-high efficiency filter used in the instrument is U15 grade, with double-sided mesh reinforcement, which not only guarantees the safety of both sides of the filter paper, but also greatly improves the strength of the high efficiency filter.

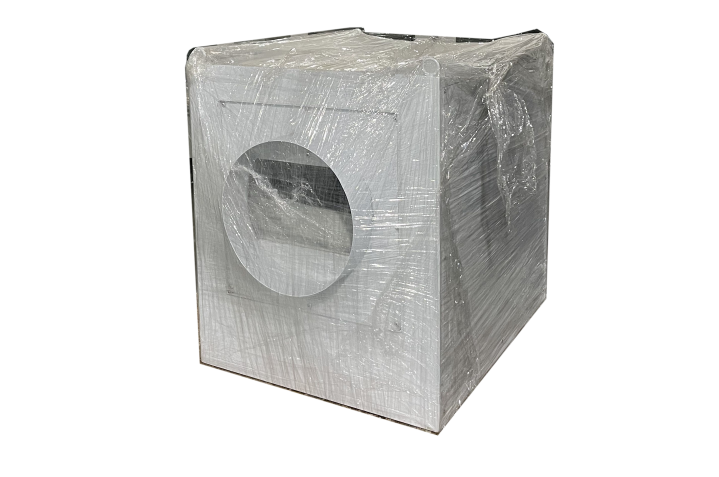

8. The whole series B2 is equipped with 380V outdoor fan, which greatly ensures the exhaust capacity and safety of biosafety cabinet. (installation is not included)
