SW-CJ-1B is an all-steel intelligent single-person single-sided horizontal laminar flow clean workbench with LED touch control, three-speed adjustable wind speed, UV timing, filter reminder, and power-off protection. 304 stainless steel countertop, H14 high-efficiency filter, purification level ISO4. Equipped with brake casters, lighting sterilization interlock, noise ≤62dB, safe and convenient operation.
86-15688870591
cedric@cedriccn.com
Product Features:
·LED control interface, touch key operation, can achieve low, medium and high speed adjustment.
·It can display the instrument start time and instrument running time; equipped with high efficiency filter replacement reminder function and UV lamp pre-arranged timing open and close function.
·The working surface is made of high quality stainless steel, which is corrosion resistant and easy to clean.
·An arbitrary positioning gate system is adopted.
·The outer shell is made of high quality cold rolled steel plate with ivory white electrostatic powder coating, which has strong corrosion resistance and can effectively inhibit the breeding of bacteria on the surface of the cabinet.
·The streamlined shape of the luxurious whole machine minimizes the disturbance of airflow in the working area.
·Universal rotating high quality casters with brake device, flexible movement, easy and reliable fixation.
·The user-friendly pre-filter is designed to be quickly replaced and cleaned, making it more convenient for customers.
·Interlock function of lighting and sterilization system, with backup socket design, power failure protection function, safe and convenient use.
·Horizontal layer air outlet.
·All steel intelligent,single person single side horizontal laminar flow clean workbench.
Product Specification:
Model | SW-CJ-1B |
External size(W*D*H) | 1050*740*1600 (width W*depth D *height H) mm |
Internal size(W*D*H) | 870*550*520 (width W*depth D*height H) mm |
Purification efficiency | Level 10 (ISO4) |
Weight | 100kg |
Average air velocity | 0.3-0.6m/s (adjustable) |
Power | 0.4KW |
Average number of bacterial colonies Average number of colonies | ≤0.5 per dish·0.5 hour (A/dish/hour) |
Noise | ≤62dB（A） |
Vibration/half peak amplitude | ≤3μm（X·Y·Z） |
Power supply | 220V 50HZ |
Filter size | 865×555×50×1 (length L × width W × height H × number A) mm |
Lighting lamp/ Fluorescent lamp/UV lamp specifications | (LED) 18W×①/14W×① (T5 integrated) |
illumination | ≥300LX |
Characteristic:

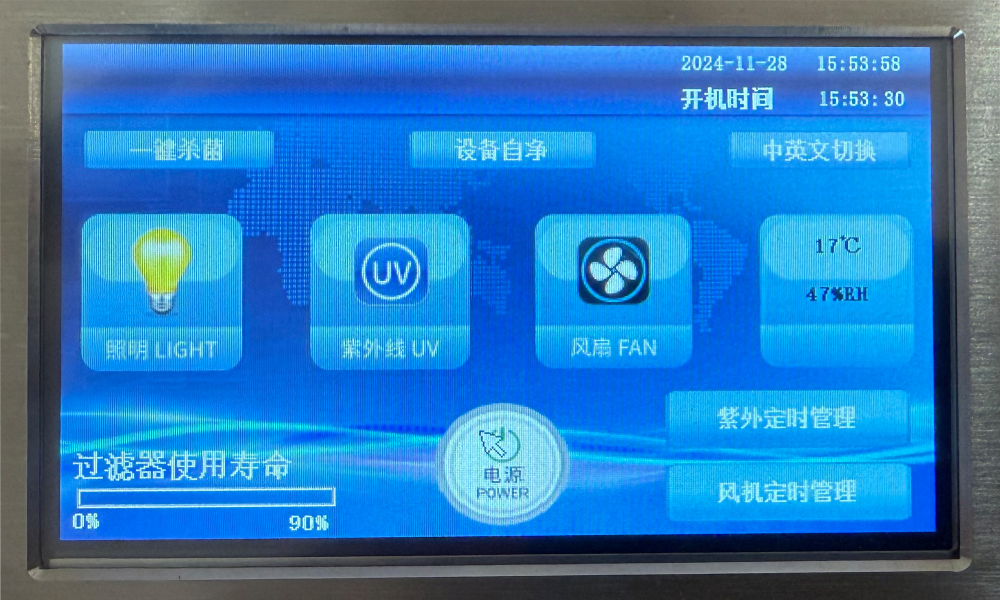

| 1. The new LED LCD panel is configured, with low, medium and high speed adjustment; the real-time display of local time and equipment start time; equipped with efficient filter replacement reminder function, real-time temperature and humidity display function, Chinese-English switching function; you can also choose to equip with wind speed sensor, so as to display real-time decreasing wind speed. |

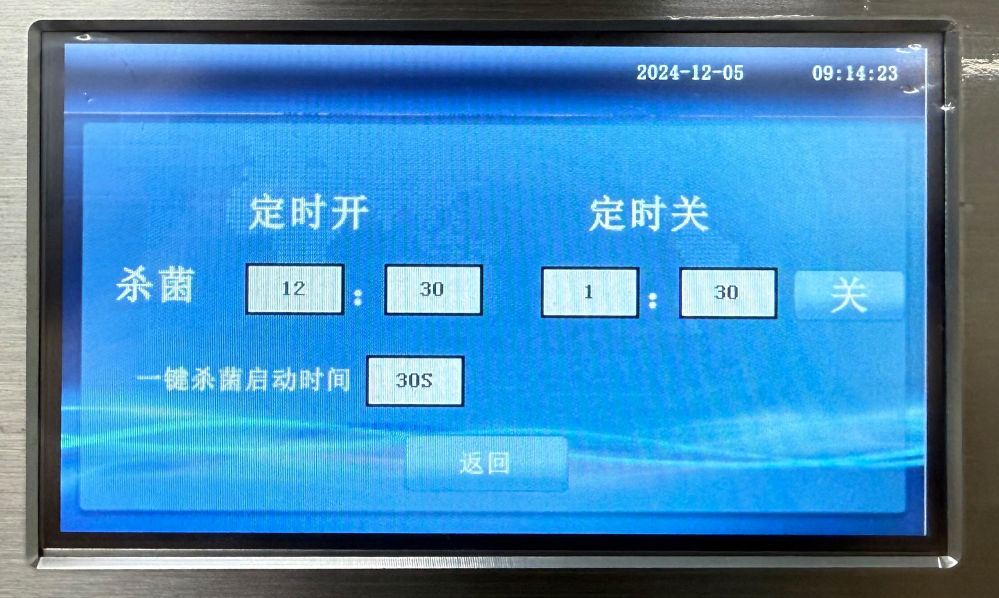

| 2. The UV lamp is equipped with one-click sterilization function, which can be quickly turned on before and after the use of the equipment to achieve sterilization (the duration can be set, the maximum value is 999 seconds), and it also has a 24-hour time reservation function, which comprehensively meets customer needs. |

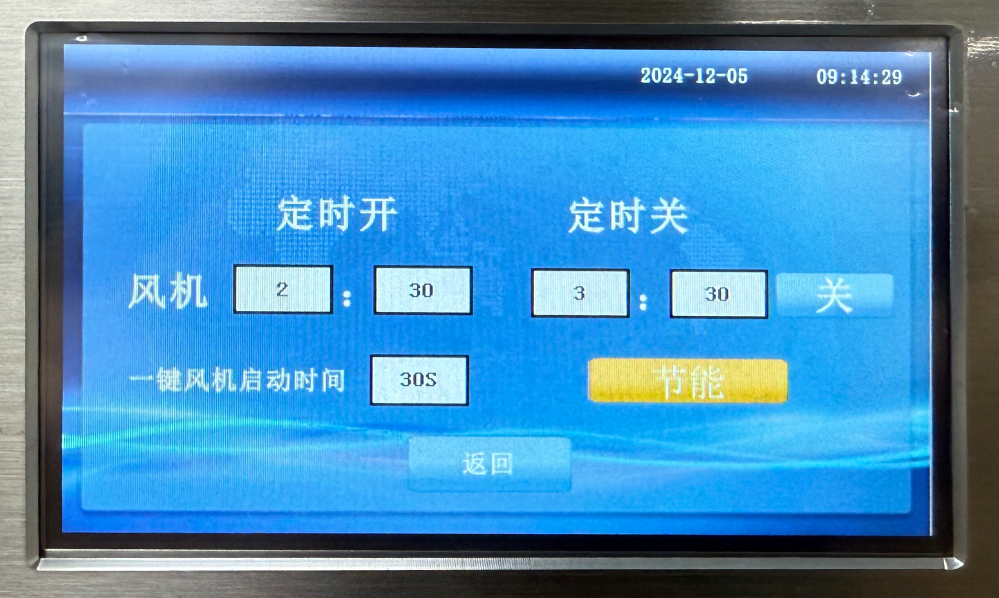

| 3. The fan system is equipped with one-click self-purification function, which can quickly meet the 100-level requirements of the cabin before and after the equipment is used (the time can be set, the maximum value is 999 seconds), and also has a 24-hour scheduled appointment function, which comprehensively meets customer needs. |

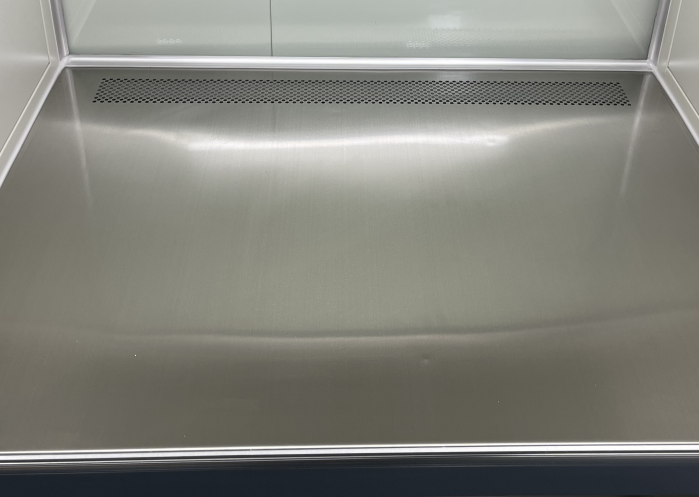

| 4. The operation table is made of high quality 304 stainless steel, with smooth surface and easy to clean, no residual stains, low risk of metal ion precipitation in long-term use, and ensure health and safety. |

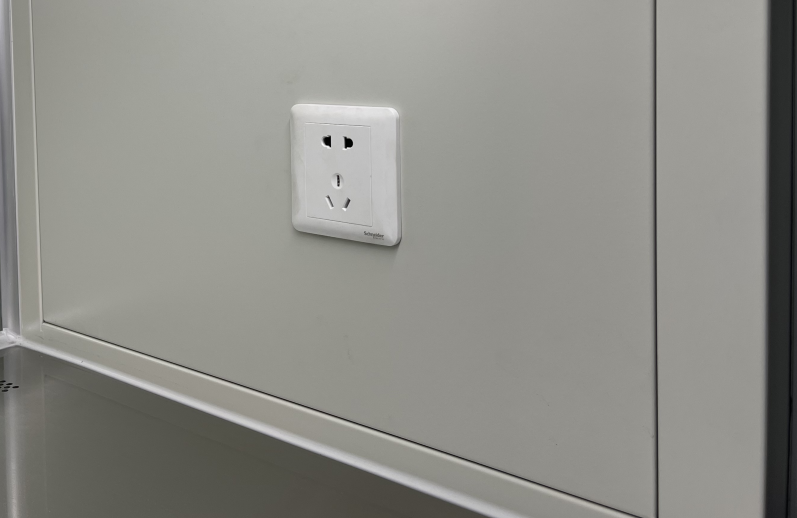

| 5. A 220V five-hole socket is configured in the operation area to meet the electricity demand of experimenters. |

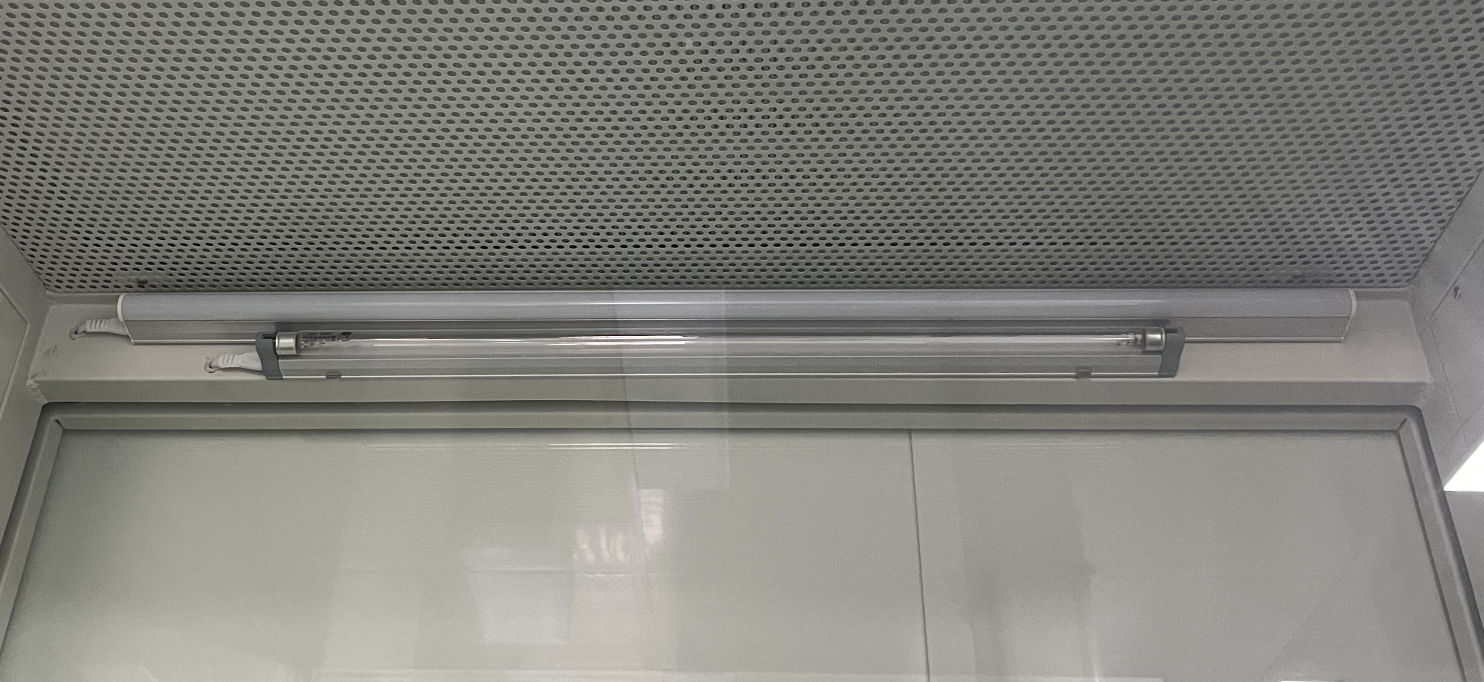

| 6. The integrated LED lamp frame and UV lamp frame are configured in the operation area to facilitate the later insertion, removal and replacement of the experimenters. |

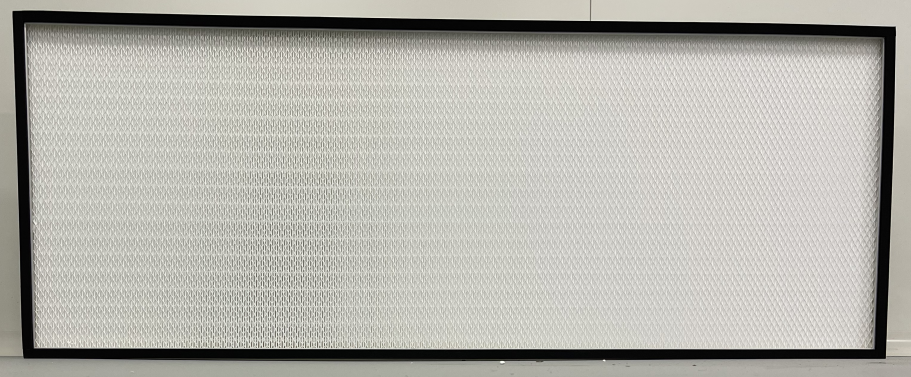

| 7. The high efficiency filter used in the instrument is H14 grade, with double-sided mesh reinforcement, which not only guarantees the safety of both sides of the filter paper, but also greatly improves the strength of the high efficiency filter. |
