SW-CJ-1F is an all-steel intelligent single-person double-sided vertical laminar flow clean workbench. It adopts LED touch operation, supports three wind speeds, switching between Chinese and English, and has temperature, humidity and time display, filter reminder, scheduled sterilization and self-cleaning functions. Equipped with 304 stainless steel countertop, H14 high-efficiency filter, purification level 100, noise ≤62dB, with brake casters, power-off protection and lighting sterilization interlock, safe and easy to use.
86-15688870591
cedric@cedriccn.com
Product Features:
·LED control interface, touch key operation, can achieve low, medium and high speed adjustment.
·The real-time display of local time and equipment start time; equipped with high efficiency filter replacement reminder function, one-click sterilization of ultraviolet lamp and 24-hour appointment function, fan one-click self-purification and 24-hour appointment function.
·The working surface is made of high quality stainless steel, which is corrosion resistant and easy to clean.
·An arbitrary positioning gate system is adopted.
·The outer shell is made of high quality cold rolled steel plate with ivory white electrostatic powder coating, which has strong corrosion resistance and
can effectively inhibit the breeding of bacteria on the surface of the cabinet.
·The streamlined shape of the luxurious whole machine minimizes the disturbance of airflow in the working area.
·Universal rotating high quality casters with brake device, flexible movement, easy and reliable fixation.
·The user-friendly pre-filter is designed to be quickly replaced and cleaned, making it more convenient for customers.
·Interlock function of lighting and sterilization system, with backup socket design, power failure protection function, safe and convenient use.
·Equipped with temperature and humidity display function, real-time display of temperature and humidity in the cabin, so as to complete the experiment efficiently.
·Standard Chinese-English switching function is provided for easy operation by experimenters from various countries.
·All steel intelligent, single person double side vertical laminar flow clean workbench.
Product Specification:
Model | SW-CJ-1F |
External size(W*D*H) | 1050*680*1600 (width W*depth D*height H) mm |
Internal size(W*D*H) | 870*650*520 (width W*depth D*height H) mm |
Purification efficiency | Level 100 (U.S. federal standard 209E) The 100 stage（America federal standard 209E） |
Weight | 100kg |
Average air velocity | ≥ 0.3 m/s (three adjustable levels) |
Power | 0.4KW |
Average number of bacterial colonies Average number of colonies | ≤ 0.5 per dish hour (A/dish/hour) |
Noise | ≤62dB（A） |
Vibration/half peak amplitude | ≤3μm（X·Y·Z） |
Power supply | 220V 50HZ |
Filter size | 865×555×50×1 (length L × width W × height H × number A) mm |
Lighting lamp/ Fluorescent lamp/UV lamp specifications | (LED) 18W x ①/14W x ① (T5 integrated) |
illumination | ≥300LX |
Characteristic:

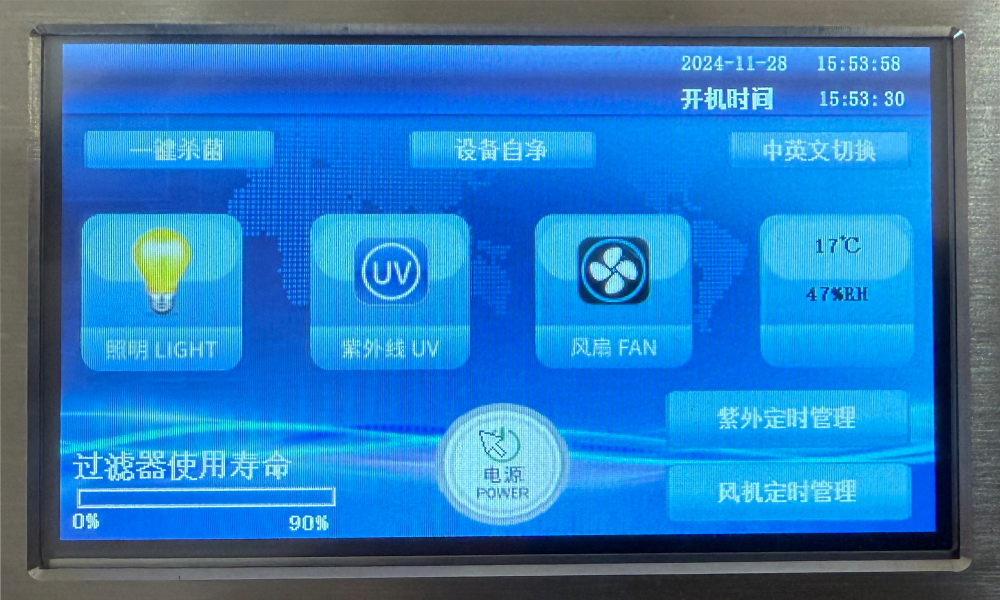

| 1. The new LED LCD panel is configured, with low, medium and high speed adjustment; the real-time display of local time and equipment start time; equipped with efficient filter replacement reminder function, real-time temperature and humidity display function, Chinese-English switching function; you can also choose to equip wind speed sensor, so as to display real-time decreasing wind speed. |

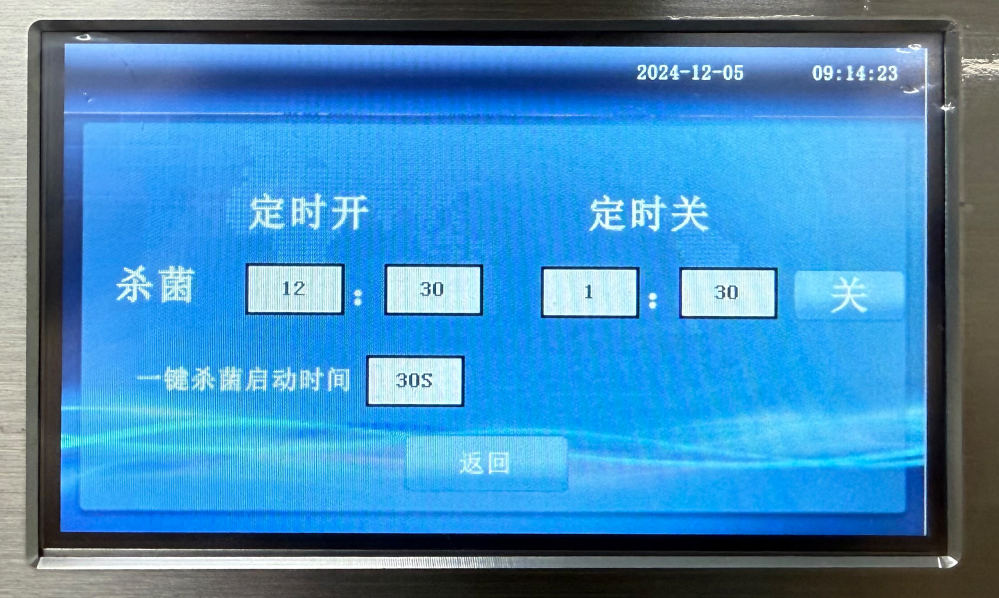

| 2. The UV lamp is equipped with one-click sterilization function, which can be quickly turned on before and after the use of the equipment to achieve sterilization (the duration can be set, the maximum value is 999 seconds), and it also has a 24-hour time reservation function to meet customer needs in an all-round way. |

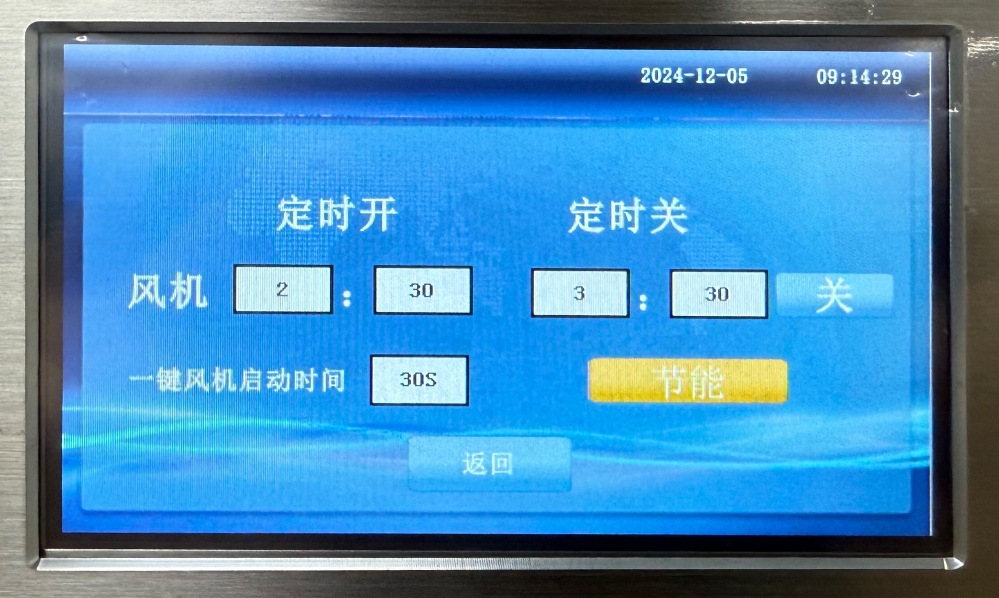

| 3. The fan system is equipped with one-click self-purification function, which can quickly meet the 100-level requirements of the cabin before and after the equipment is used (the time can be set, the maximum value is 999 seconds), and also has a 24-hour scheduled appointment function to meet customer needs in an all-round way. |

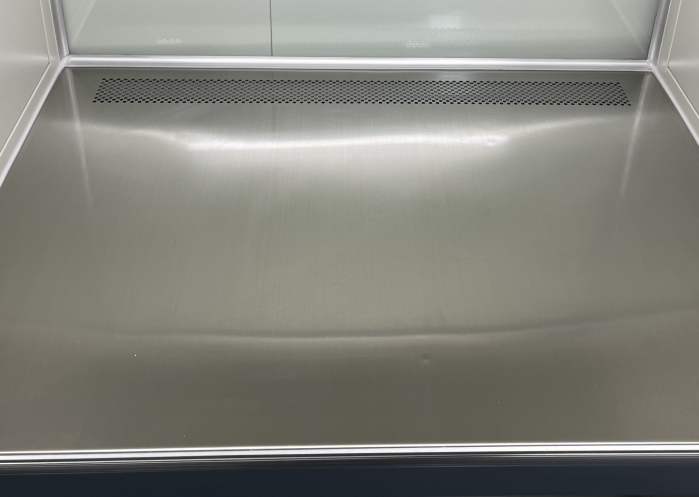

| 4. The table surface is made of 1.0mm thick 304 stainless steel, and the air return hole is stamped to ensure that the instrument can discharge air normally even when the front window glass is completely closed, so as to reduce the damage caused by excessive wind pressure inside the instrument to the fan. |

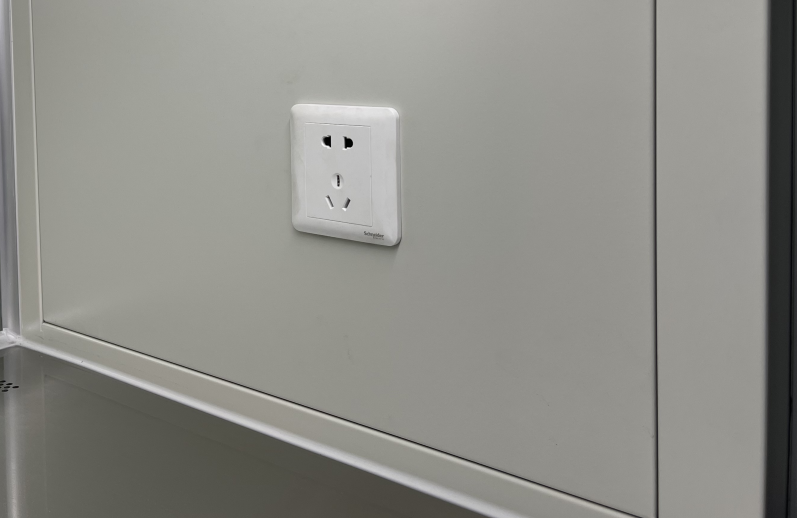

| 5. A 220V five-hole socket is configured in the operation area to meet the electricity demand of experimenters. |

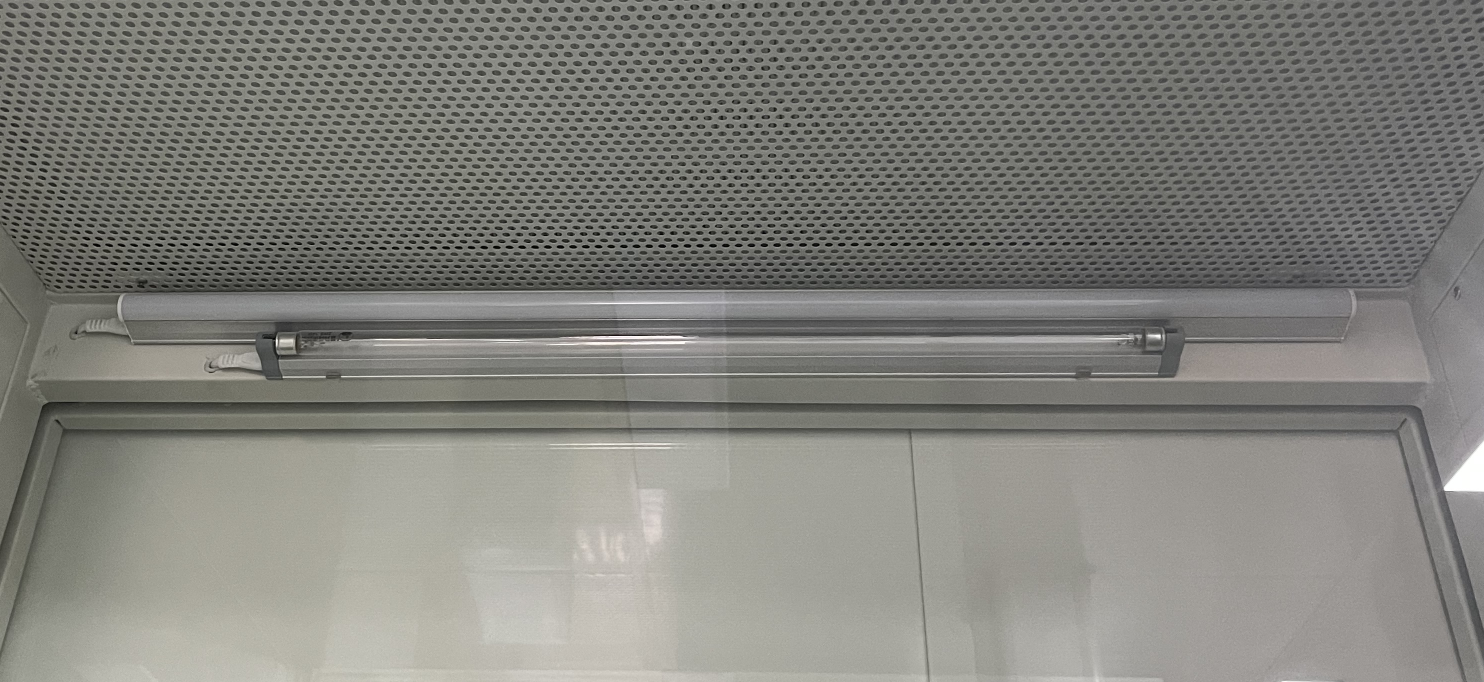

| 6. The integrated LED lamp frame and UV lamp frame are configured in the operation area to facilitate the later insertion, removal and replacement of the experimenters. |

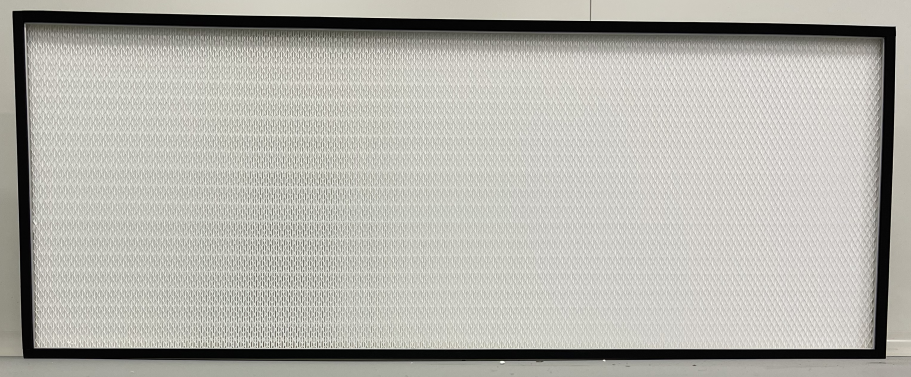

| 7. The high efficiency filter used in the instrument is H14 grade, with double-sided mesh reinforcement, which not only guarantees the safety of both sides of the filter paper, but also greatly improves the strength of the high efficiency filter. |
