Thermo Mix thermostatic mixer supports heating/cooling/mixing functions, temperature range - 5℃~110℃, temperature control accuracy ±0.5℃, with TFT display and program control, optional different modules, suitable for reagent temperature control, enzyme reactions, DNA extraction and other experiments.
86-15688870591
cedric@cedriccn.com
Product Features:
·Compact, programmable and overheating protection for safe sample handling
·Precise temperature control for heating and cooling -5℃ to 110℃ for all major lab applications
·Interchangeable sample blocks available
·Most common application includes reagent warming/cooling, DNA extractions, enzymatic reactions and reactions that need to processed at or near room temperature.
Product Specifications:

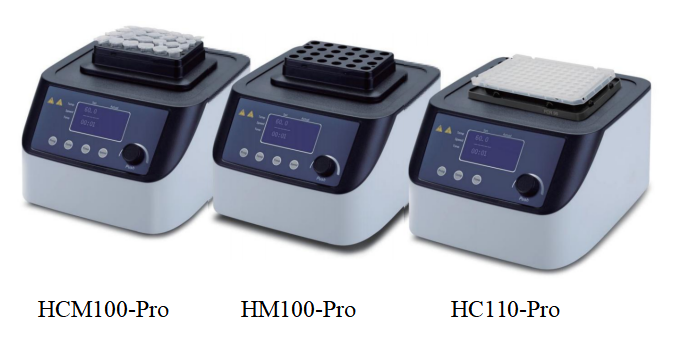

Model | H100-Pro | HCM100-Pro | HM100-Pro | HC110-Pro |
Functions | Heating | Heating,cooling&mixing | Heating&mixing | Heating&cooling |
Temp. range (℃) | RT.+5-100 | Below RT.15- 100 | RT.-100 | Below RT.5- 110 |
Temp. Setting range (℃) | 0-100 | 0-100 | 0-100 | -5-110 |
Temp. control accuracy@20-45 (℃) | ±0.5 | ±0.5 | ±0.5 | ±0.5 |
Temp. uniformity@20-45 (℃) | ±0.5 | ±0.5 | ±0.5 | ±0.5 |
Power (W) | 200 | 200 | 200 | 200 |
Time setting range | 0min-99h59min | 0min~99h30min | 0min~99h30min | 0min~99h30min |
Max Heating speed | / | 5.5℃/min | 5.5℃/min | 5.5℃/min |
Max Cooling speed | / | 5℃/min(100℃-RT.) 0.5℃/min(Below RT.) | - | 2.5℃/min(100℃-RT.) 0.5℃/min(Below RT.) |
Mixing speed (rpm) | / | 200-1500 | 200-1500 | - |
Mixing orbit (mm) | / | 3 | 3 | - |
Display | TFT | TFT | TFT | TFT |
Program | / | 9 | 9 | 9 |
Overheating protection (℃) | / | 150 | 150 | 150 |
Voltage,Frequency | 110/220V,50/60HZ | 110/220V,50/60HZ | 110/220V,50/60HZ | 110/220V,50/60HZ |
Operating temperature (℃) | 10-40 | 10-40 | 10-40 | 10-40 |
Operating humidity (% RH) | <80 | <80 | <80 | <80 |
Dimension (W*D*H)mm | 200*235*120 | 200*235*120 | 200*235*120 | 200*235*120 |
Packing size (W*D*H)mm | 440*420*270 | 440*420*270 | 440*420*270 | 440*420*270 |
Weight (kg) | 7.3/8 | 7.3/8 | 7.3/8 | 7.3/8 |
