Electrophoresis power supplies EP-600/EP-300HC
Electrophoresis power supplies EP-600/EP-300HC

The EP-600 power supply covers the broadest range of applications in the market, meeting the power needs of small vertical electrophoresis, high-throughput electrophoresis, and blotting. It supports applications such as SDS-PAGE, Native-PAGE, common protein, and DNA/RNA electrophoresis.

86-15688870591
cedric@cedriccn.com
Description

Product Features:

·LCD Touchscreen: Simple programming and progress tracking.

·High Precision: Adjustable voltage, current, and power with automatic mode switching.

·Real-time Data Recording: USB support for data analysis.

·Easy Programming: Multi-step programs with tabular entry.

·Stable Performance: Multi-CPU control ensures reliability.

·Power Failure Recovery: ON/OFF setting based on experimental needs.

·Low Current Maintenance: ON/OFF setting as needed.

·Safety Protection and Alarm: Short-circuit protection, no-load protection, and a buzzer that can be set according to experimental needs.

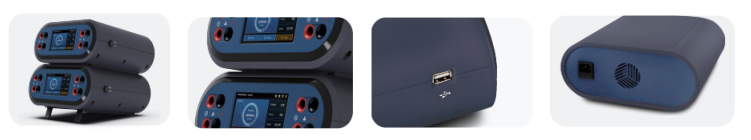

·Space-saving Design: Anti-slip grooves enable stacking multiple power supplies, saving lab space.

·Multiple Outputs: Four sockets for simultaneous use of four electrophoresis units.


Product Specifications:

Model

EP-600

EP-300HC

Display

LCD touchscreen

LCD touchscreen

Output Types

Constant Voltage, Constant Current,Constant Power (continuously adjustable)

Voltage Range

0~600V

0~300V

Current Range

0~600mA

0~3000mA

Power Range

0~360W

0~400W

Resolution

Voltage (1V), Current (1mA), Power (1W)

Time Setting Range

1min ~ 99h59min

1min ~ 99h59min

Interface

USB

USB

Output Sockets

4 sets

4 sets

Voltage

100-120V/200-240V,50/60Hz

100~240V,50/60Hz

Operating Temp. and Humidity

0℃~40℃,≤95%

0℃~40℃,≤95%

Dimensions(L*W*H)

310*260*115mm

310*260*115mm

Weight

1.96kg

2.05kg
