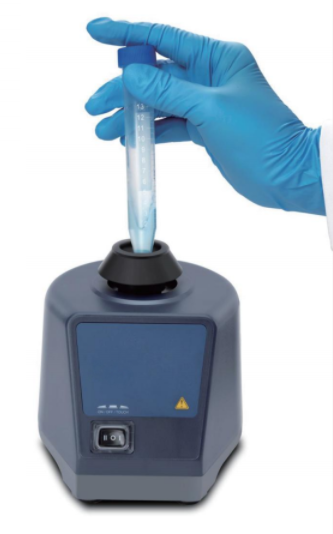

VM-F fixed speed vortex mixer, constant 3000rpm, supports jog/continuous mode, track diameter 4mm, suitable for ≤30mm test tubes, can mix high viscosity samples, and is widely used in clinical and biochemical experiments.
86-15688870591
cedric@cedriccn.com
Applications：
·Vortex mixers are ideal for mixing liquid components in tubes, resuspension of cells, using an eccentric mechanism. They are widely used in clinical labs performing virus diagnostic tests and in biological & chemical analysis applications.
·It is perfect for mixing high-viscosity materials, such as waxes and slurries; to mix battery slurries, paints, pharmaceuticals and more.
Product Specifications:
Model | VM-F(Fixed speed) |
Voltage,Frequency | 100-120V/200-240V,50/60Hz |
Power | 60W |
Mixing Motion | Orbital |
Orbital Diameter | 4mm |
Motor Type | Shaded pole motor |
Motor Rating Input | 58W |
Motor Rating Output | 10W |
Speed Range | 3000rpm |
Speed Display | - |
Run Type | Touch operation/Continuous |
Permissible Ambient Temperature | 5-40℃ |
Permissible Relative Humidity | 80%RH |
Protection Class | IP20 |
Dimension(W*H*D)mm | 127*130*160mm |
Packing size(W*H*D)mm | 290*240*220mm |
Net/Gross Weight | 2.0Kg/3kg |
VT1.1 Standard top (Default) | Cat. No.18900034 |
for <Ø30mm tubes and small vessels |
|
