Shaking incubator CD-203T/CD-206T

CD-203T/206T superimposed constant temperature shaker supports multi-layer combination and precise PID temperature control of 4-65℃. With USB data recording, multi-stage programs, forward and reverse rotation and UV disinfection, it runs smoothly. LCD display, waterproof and easy to clean, suitable for large-capacity culture and efficient shaking culture in the laboratory.

Send E-mail Get Price

86-15688870591

cedric@cedriccn.com

Description

CD-206T

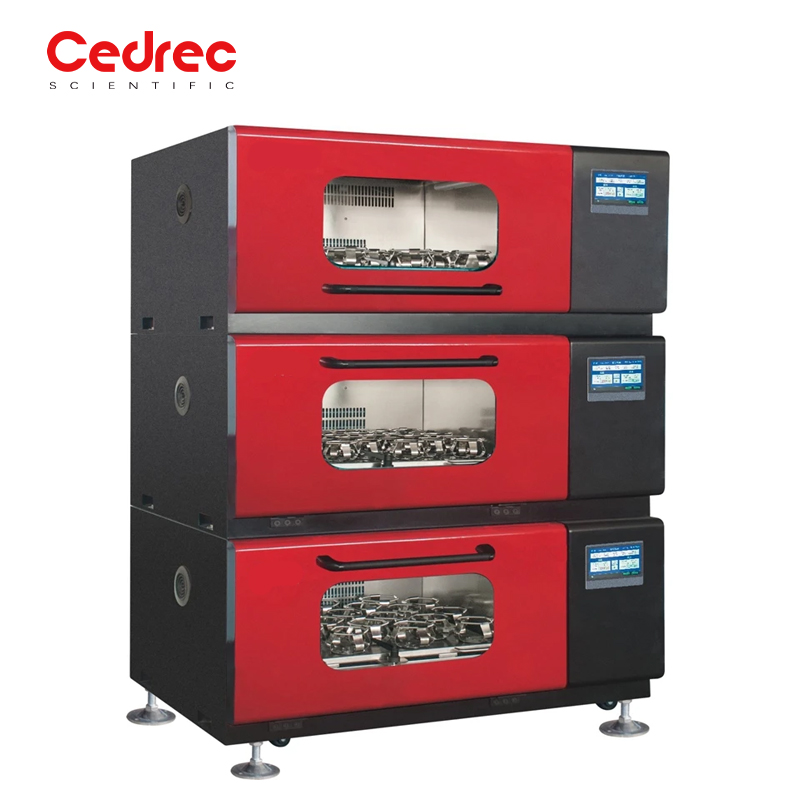

CD-203T-206T-图1

Product Features:

·Single, double, or triple-layer stacked configurations provide users with maximum usable space while minimizing footprint.

·PID microcomputer intelligent temperature control system ensures precise temperature control.

·Multi-dimensional integrated eccentric wheel drive with a unique dynamic balance design ensures smooth, stable, durable, and reliable operation.

·Pioneering cutting-edge USB data recording system. Automatically records experimental data throughout the entire process.

·USB flash drive records experimental data throughout the entire process (temperature, rotation speed, and time).

·Downloaded data is automatically listed, plotted, saved, and printed. Experimental processes can be easily replayed with a simple mouse click. This facilitates optimization of reaction conditions, selection of experimental methods, and confirmation of experimental procedures.

·Multi-segment speed, temperature, and time control system. Multiple different speed, temperature, and time experimental modes can be set at once, and the operating mode is automatically switched during operation.

·Built-in flow-guiding waterproof system effectively prevents liquid leakage from broken sample vials from damaging the motor, and cleaning is convenient without the need for special tools.

·The bottom of the shaker cavity can be thoroughly cleaned without any blind spots.

·Equipped with a high-quality servo motor, ensuring precise speed control, excellent high and low speed performance, and strong stability. A minimum speed of 1 rpm can be customized according to customer requirements.

·Utilizes a high-quality compressor and a safe, fluorine-free refrigeration system that meets international environmental standards. It features low noise, excellent cooling performance, and ensures stable operation for extended periods at low temperatures.

·Features UV disinfection (including duct disinfection) and lighting functions.

·LCD display shows temperature, time, and speed.

·Users can freely set three operating modes: forward, reverse, and alternating forward and reverse.

Product Specifications:

Product Model	CD-203T	CD-206T
Control Method	P.I.D Microcomputer Processing Chip	P.I.D Microcomputer Processing Chip
Convection Method	Forced convection	Forced convection
Oscillation Mode	Cyclotron	Cyclotron
Display Method	LCD Display	LCD Display
Download Processing	USB Data Port Download	USB Data Port Download
Control mode	Standard Mode; Static mode; Continuous mode; Program control mode (control of multiple speed,temperature, and time segments)	Standard Mode; Static mode; Continuous mode; Program control mode (control of multiple speed, temperature, and time segments)
Cyclotron frequency range	0; 20-350rpm (Top layer 20-300rpm, can be statically cultured, operated in reverse or alternating directions)	0; 20-350rpm (Top layer 20-300rpm, can be statically cultured, operated in reverse or alternating directions)
Cyclotron frequency accuracy	± 1rpm	± 1rpm
Swing amplitude of the shaking plate	Φ 26mm (customizable for Φ 35 (20-250rpm), Φ 50 (20-200rpm))	Φ 26mm (customizable for Φ 35 (20-250rpm), Φ 50 (20-200rpm))
Maximum configuration (flask clamp)	250ml * 32 or 500ml * 21 or 1000ml * 13 or 2000ml * 7 (per unit)	250ml * 25 or 500ml * 16 or 1L * 9 or 2L * 5 (per unit)
Maximum configuration (adhesive board)	250ml * 32 or 500ml * 20 or 1000ml * 12 or 2000ml * 8 (per unit)	250ml * 25 or 500ml * 16 or 1L * 9 or 2L * 5 (per unit)
Standard Configuration	500ml * 20	500ml * 16
Tray size	610 * 460mm (per unit)	475 * 465mm (per unit)
Timing range	0-9999h/min (can run continuously without timing)	0-9999 h/min (can run continuously without timing)
Temp. control range	4-65 ℃ (20 ℃)	4-65 ℃ (20 ℃)
Temp. control accuracy	± 0.1 ℃	± 0.1 ℃
Temp. uniformity	± 0.6 (37 ℃, effective working surface)	± 0.6 (37 ℃, effective working surface)
Temp. fluctuation	≤ 0.1 (37 ℃)	≤ 0.1 (37 ℃)
Dimensions	1120 * 790 * 620mm (per unit)	890 × 760 × 650mm (per unit)
Capacity	180L (per unit)	164L (per unit)
Power	1200W (per unit)	650W (per unit)
Power Supply	AC220 ± 10% 50Hz	AC220 ± 10% 50Hz
Auxiliary Functions	Ultra low speed start, adjustable start speed, monitoring timer, parameter memory, power recovery, refrigeration unit overload protection and power delay start, automatic defrosting, upper and lower limit over temperature sound and light alarm, door opening self stop, lighting, UV disinfection function, parameter setting viewing, monitoring temperature and environmental temperature correction.
