This electrophoresis power supply has multiple models, supports constant voltage/constant current/constant power output, and can be connected to 4 electrophoresis tanks at the same time. Equipped with program control, multiple protections and a 7-inch touch screen, it has a wide voltage, current and power adjustment range and is suitable for a variety of electrophoresis experiments.
86-15688870591
cedric@cedriccn.com

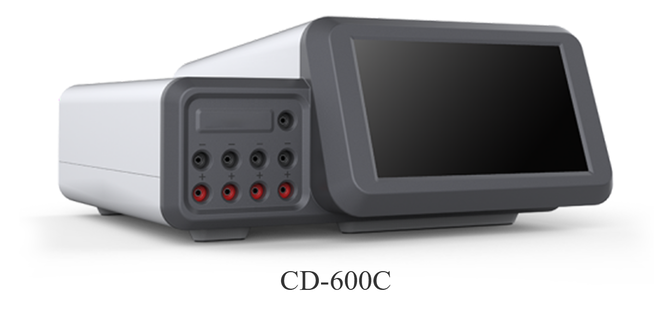

CD-600C

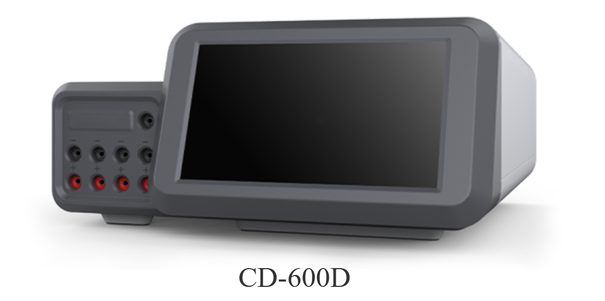

CD-600D
Product Features:
·Four sets of output jacks: High current can connect four electrophoresis tanks simultaneously
·Type of Output: constant voltage, constant current, and constant power, continuously adjustable
·Step-by-step control function:editable 10 groups, each group of up to make 10 program automatic connection
·operation Protection function: when overcurrent, overload, over temperature, no load, short circuit
·Micro current: After timed operation, unmanned shutdown can maintain micro current output
·Display screen: 7-inch large touch screen, automatic generation of Numeric keypad during setting, display timing, temperature, operation status and various prompt operations
·Automatic setting: When a certain indicator of constant voltage, current, and power is set, the other two items automatically increase to the maximum value, No need for manual adjustment.
Product Specification:
Model | CD-600C | CD-600D | CD-500HC |
Type | Universal Power Supply | High Current Power Supply | |
Input range | 110-250V | 110-250V | 110-250V |
Output range | 5-600V 1-600mA 5-300W | 5-600V 1-1200mA 5-500W | 5-500V 1-3000mA 5-500W |
Increment | Voltage (1V) Current (1mA) Power (1W) | ||
Timing range | 1 minute to 99 hours and 59 minutes | ||
Temperature detection | -20 ℃~+85 ℃ | ||
External dimensions | 300*300*130mm | 300*300*130mm | 300*300*130mm |
Weight | 2.5KG | 2.5KG | 3KG |
