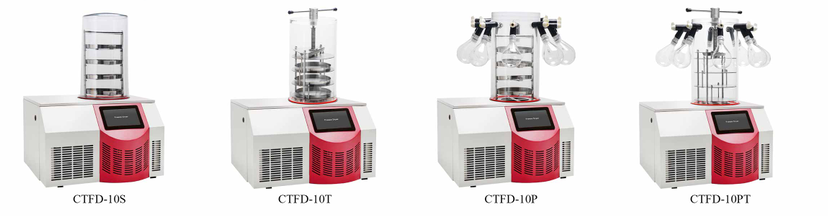

Type

Standard chamber

Stoppering chamber

Standard chamber

with 8 port manifold

Stoppering chamber  with 8 port manifold

Final condenser temp(℃)

-60

-60

-60

-60

Vacuum degree(Pa)

<10

<10

<10

<10

Condenser volume(L)

6.5

6.5

6.5

6.5

Freeze drying area(m²)

0.12 or 0.18

0.09

0.12 or 0.18

0.09

Water condenser capacity(Kg/24h)

3

3

3

3

Qty of shelf

4 or 6 (optional)

3

4 or 6 (optional)

3

Material loading capacity/shelf(mL)

300

300

300

300

Material loading capacity(mL)

1200 or 1800

900

1200 or 1800

900

Manifold

/

/

8 pieces

8 pieces

USB interface

Y

Y

Y

Y

Drying chamber(standard)

Transparent acrylic

Vacuum pump

Standard model:2XZ-2; Speed:2L/S

Control system

Microprocessor,touch screen

Ultimate vacuum(Pa)

Economic:1 Classic:0.6

Noise(dB)

<66

Electrical requirement

Electrical voltage

220V

Electrical frequency

50Hz,60Hz

Power(Kw)

0.85

Size information

Condenser chamber size(φ×Hmm)

215×190

Sample tray size(φ×Hmm)

200×20

Sample shelf size(φ×Hmm)

210×365

234×518

210×365

234×518

Sample Shelf distance average(Hmm)

76 or 50

70

76 or 50

70

Host size(WxDxHmm)

600×540×374

Vacuum hood size

(uppero/lowerφxHmm)

260/240×450

Exterior dimension(WxDxHmm)

600×540×820

600×540×880

600×540×820

600×540×880

Host net weight(Kg)

46

Host package(WxDxHmm)

670×700×630

Vacuum hood package(WxDxHmm)

410×410×640

Vacuum pump package(WxDxHmm)

220×580×370

Weight(Kg)

110
