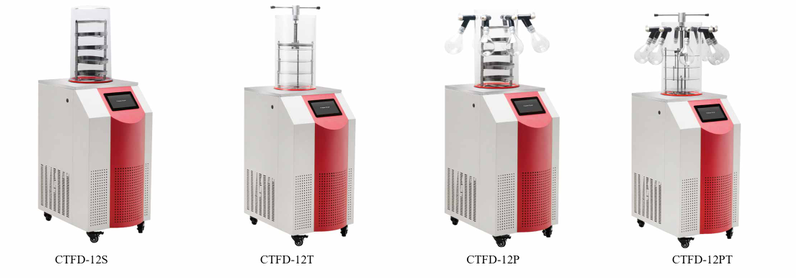

Type

Standard chamber

Stoppering chamber

Standard chamber

with 8 port manifold

Stoppering chamber  with 8 port manifold

Final condenser temp(℃)

-60 or-80

-60 or-80

-60 or-80

-60 or-80

Vacuum degree(Pa)

<10

<10

<10

<10

Condenser volume (L)

9.5

9.5

9.5

9.5

Freeze drying area(m²)

0.12 or0.18

0.09

0.12 or 0.18

0.09

Water condenser capacity(Kg/24h)

4

4

4

4

Qty of shelf

4 or 6 (optional)

3

4 or 6 (optional)

3

Material loading capacity/shelf(mL)

300

300

300

300

Material loading capacity(mL)

1200 or 1800

900

1200 or 1800

900

Manifold

/

/

8 pieces

8 pieces

USB interface

Y

Y

Y

Y

Drying chamber(standard)

Transparent acrylic

Vacuum pump

Standard model:2XZ-2;Speed:2L/S

Control system

Microprocessor,touch screen

Ultimate vacuum(Pa)

Economic:1 Classic and Premium:0.6 for-60℃/0.3 for-80℃

Noise(dB)

<66

Electrical requirement

Electrical voltage

220V

Electrical frequency

50Hz,60Hz

Power(Kw)

0.95 or 1.5

Size information

Condenser chamber size(φ×Hmm)

217×250

Sample tray size(φ×Hmm)

200×20

Sample shelf size(φ×Hmm)

210×365

234×518

210×365

234×518

Sample Shelf distance average(Hmm)

76 or 50

70

76 or 50

70

Host size(WxDxHmm)

480×610×905

Vacuum hood szie (uppero/loweroxHmm)

260/240×450

Exterior size(WxDxHmm)

480×610×1355

480×610×1415

480×610×1355

480×610×1415

Host net weight(Kg)

70 or 83

Package information

Host package(WxDxHmm)

730×600×1250

Vacuum hood package(WxDxHmm)

410×410×640

Vacuum pump package(WxDxHmm)

220×580×370

Weight(Kg)

135 or 155
