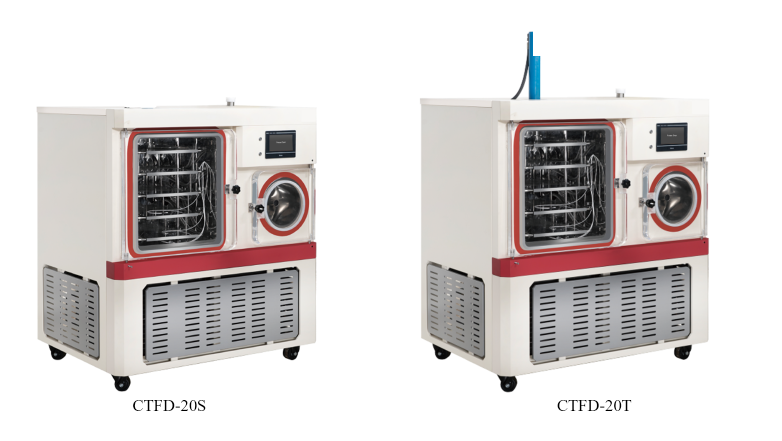

The freeze dryer series includes two models: CTFD-20S and CTFD-20T. The CTFD-20S features hydraulic pressure plugging, with temperature control ranging from -50 to -70℃, a condenser temperature of -80℃, a drying area of 0.24㎡, and a water capture capacity of 6.5kg over 24 hours. The vacuum degree is less than 10Pa, and it is air-cooled with defrosting function. The voltage options are 220V/380V. The CTFD-20T model is equipped with hydraulic sealing, suitable for large-scale freeze drying of vials.
86-15688870591
sales1@cedriccn.com
Product Specifications:
Model | CTFD-20S | CTFD-20T |
Type | Standard | Top-press |
Shelf temp(℃) | -50~70 | -50~70 |
Final condenser temp(℃) | -80 | -80 |
Vacuum degree(Pa) | <10 | <10 |
Condenser volume(L) | 13 | 13 |
Freeze drying area(m²) | 0.24 | 0.24 |
Condenser capacity(Kg/24h) | 6.5 | 6.5 |
Distance between shelves(mm) | 145 | 145 |
Liquid material loading capacity(L) | 4.5 | 4.5 |
Temperature uniformity(℃) | ±1 | ±1 |
Cooling mode | Air cooling | Air cooling |
Heating defrost function for condenser chamber | Y | Y |
Cap seal method | N | Hydraulic pressure |
Vacuum pump | Standard model:BSV-30;Speed:8.3L/S | |
Ultimate vacuum | ≤10 | ≤10 |
Noise(dB) | <80 | <80 |
Electrical voltage | 220V or 380V | |
Electrical frequency | 50Hz,60Hz | |
Power(Kw) | 3 | 3.5 |
Condenser chamber dimension(φxHmm) | 240×307 | |
Drying room dimension(WxDxHmm) | 470×495×415 | |
Exterior dimension(WxDxHmm) | 1339×932×1319 | 1339×932×1601 |
Shelf specification(LxWxHmm) | 300×400×20 | |
Qty of shelf | 2+1 | 2+1 |
Penicillin bottleφ22 | 468 | 468 |
Penicillin bottle φ16 | 864 | 864 |
Penicillin bottleφ12 | 1584 | 1584 |
Host net weight(Kg) | 380 | 425 |
Host package(WxDxHmm) | 1490×1140×1660 | |
Vacuum pump package(WxDxHmm) | 850×330×450 | |
Weight(Kg) | 550 | 600 |
