FH-1000/1200 ductless fume hood, equipped with activated carbon filtration system, 7-inch touch screen for real-time monitoring of data, low-noise fan, three-sided transparent observation windows, and optional filter materials as needed to provide a safe and clean operating environment for experiments.
86-15688870591
cedric@cedriccn.com
Product Features:
·Standard with Active carbon filter.
Effectively filter harmful gases, particles, dust, bacteria and other harmful substances produced in the experiment process to ensure the cleanliness of the laboratory environment. It protects the operator and environment.

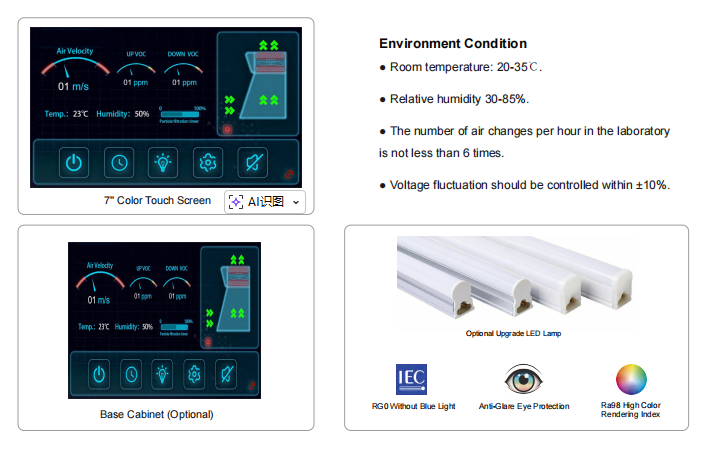

·With a 7-inch LCD color touchscreen.
It displays real-time parameters such as air velocity, VOC concentration, temperature and humidity, and filter lifetime. This achieves excellent human-machine interaction.
·With a real-time monitoring and alarm system.
Which can monitor the surface Air velocity and the saturation degree of the filter in real time, and inform the user in time when there is an abnormal situation, to ensure the safety of operation.
·Low noise design.
Using high-quality DC centrifugal blower to ensure performance while providing users with a quiet working environment.
·Humanized design.
Three-sided acrylic transparent material observation window, convenient for multi-angle observation.
Product Specification:
Model | FH-1000 | FH-1200 | |
External size(W*D*H) | 1000×620×1800mm | 1200×620×1800mm | |
Internal size(W*D*H) | 980×540×775mm | 1180×540×775mm | |
Max.Opening | 650mm | ||
Operation Surface Height | 690mm | ||
Control System | 7'' color touch screen,real-time display air velocity, VOC concentration, temperature and humidity, and filter life time etc | ||
Airflow System | Airflow Velocity | 0.4-0.6m/s, speed adjustable | |
Air Filtration System | Filter | 1pcs Pre-filter, Polyester fiber,washable | 2pcs Pre-filter, Polyester fiber,washable |
1pcs Active Carbon filter | 2pcs Active Carbon filter | ||
Cabinet Construction | Main Body | Electro-galvanized steel with antimicrobial Powder Coating | |
Work Surface | 304 Stainless Steel, Max.loading of worksurface: 70kg | ||
Front Window | Manual acrylic window | ||
Electrical System | LED Lamp | 16W×2 | |
Blower | DC Centrifugal blower, adjustable speed, low noise | ||
Consumption | 60W | 120W | |
Power Supply | 220V±10%, 50/60HZ; 110V±10%, 60Hz | ||
Sound Emission | ≤50dB(A) | ||
Standard Accessory | 1.Base Stand; 2.Active Carbon Filter; 3. Pre-Filter; 4.LED Lamp×2 | ||
Optional Accessory | 1.Base Cabinet; 2.HEPA Filter; 3.Chemical Filter; 4. Upgraded LED Lamp; 5.Solid Physicochemical Board Work Surface | ||
Shipping Size (W×D×H) | 1160×840×1320mm | 1360×840×1320mm | |
Weight | 96/138kg | 113/160kg | |
