PP fume hood is suitable for the experiment of strong acid, strong alkali, strong corrosion and volatility. It can effectively protect the operator from inhaling toxic gases and protect the operator and sample safety. And dramatically reduces the risk of fire and explosion. The environment can also be protected by installing appropriate filters.
86-15688870591
cedric@cedriccn.com
Product Features:
·The mainframe is made of PP (polypropylene) material, integrally welded.
·Resistant to strong acid, alkali and strong corrosion.
·Microprocessor control system, LCD display.

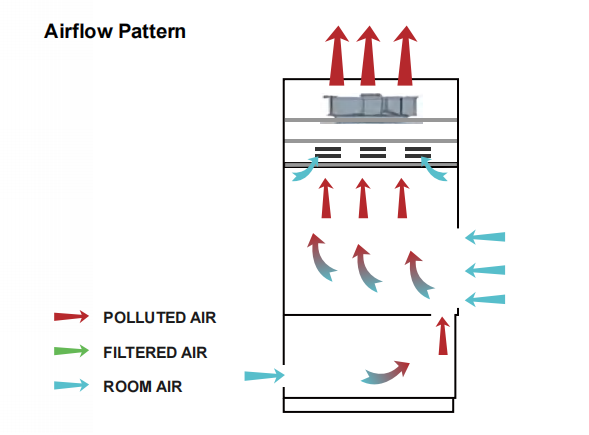

·The top adopts a top-shield suction design, and the deflector is made of homogeneous PP material, which has strong acid and alkali resistance.
·Without airflow dead angle, and the maximum exhaust gas capture performance can be obtained.
·The operating surface is equipped with water-retaining and anti-overflow treatment.
Product Specification:
Model | FH-1000(PP) | FH-1200(PP) | FH-1500(PP) | FH-1800(PP) | |
External Size (mm) | 1047*800*2450 | 1247*800*2450 | 1547*800*2450 | 1847*800*2450 | |
Internal Size (mm) | 787*560*700 | 987*560*700 | 1287*560*700 | 1587*560*700 | |
Max.Opening | 740mm | ||||
Work Surface Height | 820mm | ||||
Control System | Display | Microprocessor controller with LCD display, display the operating status of each function | |||
Airflow System | Airflow Velocity | 0.3~0.8 m/s, speed adjustable | |||
Cabinet Construction | Main Body | Made of Porcelain white PP, thickness 8mm, resistant to strong acid, alkali and anti-corrosion. | |||
Work Surface | Chemical resistant phenolic resin | ||||
Front Window | Manual, 5mm toughened glass, height adjustable.Resistant to acid and alkali | ||||
Electrical System | LED Lamp | 16W×2 | 16W×2 | 30W×2 | 36W×2 |
Blower | Built-in PP centrifugal blower(2 blowers for FH-1800PP only); Speed adjustable | ||||
Consumption | 450W | 450W | 450W | 900W | |
Not include socket loading power consumption | |||||
Power Supply | AC220V±10%, 50/60HZ; 110V±10%, 60Hz | ||||
Illumination | ≥900Lux | ||||
Sound Emission | ≤68dB(A) | ||||

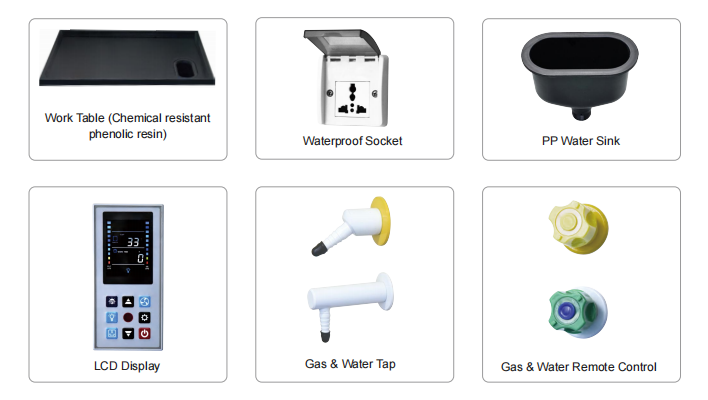

Standard Accessory | 1.Base Cabinet; | ||||
2.LED Lamp; | |||||
3.Waterproof Socket×2; | |||||
4.Water Tap (PP); | |||||
5.Gas Tap (PP); | |||||
6.Gas & Water Remote Control Valve; | |||||
7.PP Water Sink; | |||||
8.Work Table: Solid physicochemical board, resistant to acid and alkali; | |||||
9.PP Centrifugal Blower×1(2 for FH-1800PP only); | |||||
10.10m PVC aluminum foil composite exhaust duct, Diameter: 250mm; (2 pcs of 10m exhaust duct for FH-1800PP only,duct is retractable and can be cut freely.）Pipe strap x2 (4 pcs for FH-1800PP only); | |||||
Optional Accessory | 1.PP Work Table, epoxy resin board; | ||||
2.Active Carbon Filter; | |||||
G.W (Main Unit)(kg) | 137 | 155 | 180 | 206 | |
G.W (Base Cabinet)(kg) | 89 | 99 | 114 | 140 | |
Shipping Size(mm) (Main Unit) | 1188*938*1612 | 1388*938*1612 | 1688*938*1612 | 1988*938*1612 | |
Shipping Size(mm) (Base Cabinet) | 1188*888*1000 | 1388*888*1000 | 1688*888*1000 | 1988*888*1000 | |
