Voltage,Frequency

100-120V/200-240V,50/60Hz

Power

60W

Mixing Motion

Orbital

Orbital Diameter

4mm

Motor Type

Shaded pole motor

Motor Rating Input

58W

Motor Rating Output

10W

Speed Range

0-3000rpm

Speed Display

Scale

Run Type

Touch operation/Continuous

Weight

2.0Kg

Permissible Ambient Temperature

5-40℃

Permissible Relative Humidity

80%RH

Protection Class

IP20

Dimension(W*H*D)mm

127*130*160mm

Packing size(W*H*D)mm

290*240*220mm

Net/Gross Weight

2.0Kg/3kg

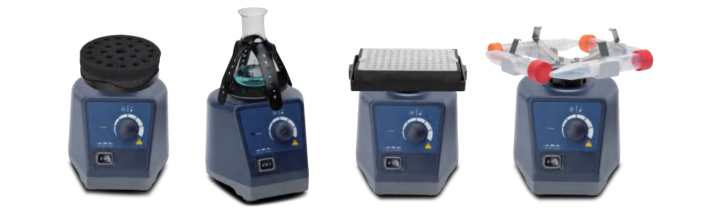

For＜Ø30mm tubes and small vessels

for 48 test tubes,

Ø6mm(1mL)

for 4 holes test tubes,

Ø28mm (50mL)

Vt1.3.2 Tube Adapter

Cat. No.18900021

Vt1.3.11 Tube Adapter

Cat. No.18900862

for 15 test tubes,

Ø10mm(1.5-2mL)

12*Ø9.8mm+12*

Ø6.6mm+12*Ø5mm

(1.5/2.0/0.5/0.2mL)

Vt1.3.3 Tube Adapter

Cat. No.18900022

Vt1.2 Tube Holding Rod

Cat. No.18900044

for 16 test tubes,

Ø12mm(5mL)

used with tube adapters

Vt1.3.4 Tube Adapter

Cat. No.18900023

Vt1.3 Universal Top Plate

Cat. No.18900505

for 8 test tubes,

Ø16mm(10mL)

Ø 100mm

Includes 4 vacuum chuck

Vt1.3.5 Tube Adapter

Cat. No.18900024

Ps1.0 Microplate Clamp

Cat. No.18204342

for 8 test tubes,

Ø20mm(10-15mL)

Includes rectangle PCR tube adapter

Vt1.3.6 Platform Pad

Cat. No.18900043

Vt1.3.12 Large Platform

Multi-Specimen Test Tube Adapter

Cat. No.18900875

Ø99mm,multiple small

tubes and vessels

44holes*Ø5mm+55holes*

Ø6.6mm+30holes*Ø9.8mm

(1.5/2.0/0.5/0.2mL)

Vt1.3.7 Vacuum Chuck

Cat. No.18900158

VT1.4 Ampule/Tube

Attachment

Cat. No.18204566

made of rubber

4pc ampule/tube

(0.2mL-15mL)

Vt1.3.8 Tube Adapter

Cat. No.18900395

VT1.5 Erlenmeyer Fask

Attachment

Cat. No.18204561

for 24 holes test tubes,

Ø 10mm (1.5-2mL)

100mL-250mL,Operating speed:
0-1500rpm

Vt1.3.9 Pcr Tube Adapter

Cat. No.18204185

for 56 test PCR tubes,strips

of 8, Ø5mm(0.1mL-0.5mL)
