Suitable for pilot-scale production,large-scale application in biology,engineering,chemical industry,beauty industry,medical industry and food processing.
86-15688870591
cedric@cedriccn.com
Product Features:
·Large LCD digital display.
·One-click automatic motor lifting (stroke 180mm),smooth and silent.
·Water/ oil heating bath with wide temperature range from RT to 180 ℃.
·Two-section vertical triple coil condensing tube with large area and strong evaporation capacity ensuring high-efficiency sample recovery.
·The connector device allows for easy and quick installation of the evaporating flask
·PTFE double sealing ring with excellent sealing performance

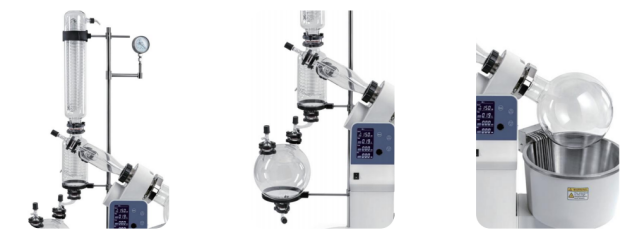

Two-section vertical triple coil condenser Switching valve design Heating bath
Product Specification:
Model | RE200-Pro | |
Performance | Temp. range | Room temp. ~180℃ (water and oil bath) |
Temp. control accuracy | Water: ±1℃ Oil: ±3℃ | |
Rotation Speed | 10~150rpm | |
Ultimate vacuum | Less 2.6mbar | |
Evaporation capacity | Max.4.5L/h (75% Alcohol) | |
Function | Temperature control | Micro processer PID control |
Display | LCD (temperature/speed/clockwise and Anti-clockwise/time) | |
Time Setting Range | 0-999min | |
Lift stroke | Motorized 180mm | |
Safety features | Motor over-current protection,earth-leakage protection lifting overload protection,Boil-dry protection,Overheating | |
Components | Evaporation flask | Round flask 20L |
Receiving flask | Round flask 10L with drain valve | |
Condenser | Two-section vertical triple coil condenser, cooling surface 1.2m2 | |
Specification | Heating bath size | Ø 450*240mm |
Hose connection | Cooling/suction nozzle outer diameter 16mm,vacuum pump nozzle outer diameter 16mm | |
Dimension(D*W*H) | 1160*600*1860mm | |
Voltage/Frequency | 220V/50/60Hz | |
Power | 4600W | |
Heating Power | 4400W | |
