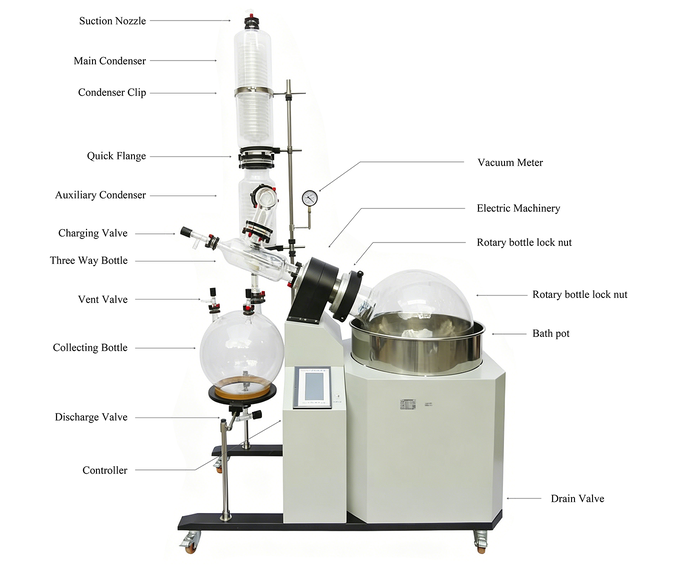

RE52100 large rotary evaporator, 100L large capacity, double condensation design, electric lifting bath, PTFE composite seal for corrosion resistance, digital display temperature control and speed adjustment, supports synchronization of distillation and liquid discharge, and is suitable for industrial-grade solvent recovery and sample concentration.
86-15688870591
cedric@cedriccn.com
Product Features:
·Double seal for PTFE and fluorinated rubber.
·Corrosion resisting, non-pollution, can maintain high vacuum.
·Equipped with check valve, distilled and discharge can be in progress synchronously.
Product Specification:
Model | RE52100 |
Rotary bottle | 100L/Φ610mm、F180 |
Collecting bottle | 50L/Φ470mm |
Speed regulation range | 0-120rpm/min |
Speed regulation mode | Digital display:frequency control |
Motor power | DC120W |
Condenser tube | Main cooler Φ230×950H(mm),upper F60,lower F260 Sub cooler Φ230×530H(mm),upper F260,lower F80*side port F120 |
Bath pot material quality | Stainless steel |
Bath pot inner container | Φ800×400H(mm) |
Temperature control range | RT.-250℃ |
Heating power | 15Kw |
Temperature fluctuation | ±1℃ |
Lifting mode | Electric lift |
Lifting motor power | 250W |
Power supply | 380V/50HZ |
Vacuum reached | 0.098Mpa |
Total power | 15.26KW |
Dimension | 1700*900*2600mm |
Weight | 280kg |
