Rotary Evaporator R1002/R2003/R3002/R5003

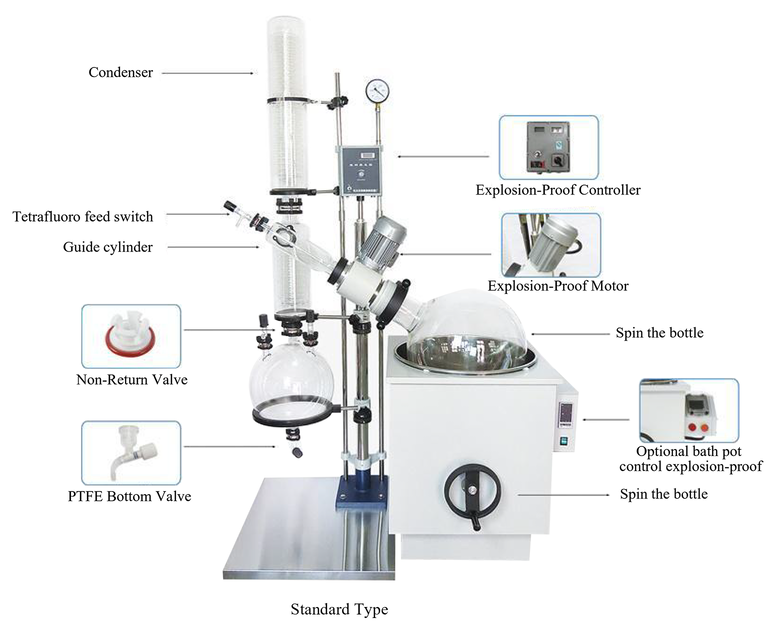

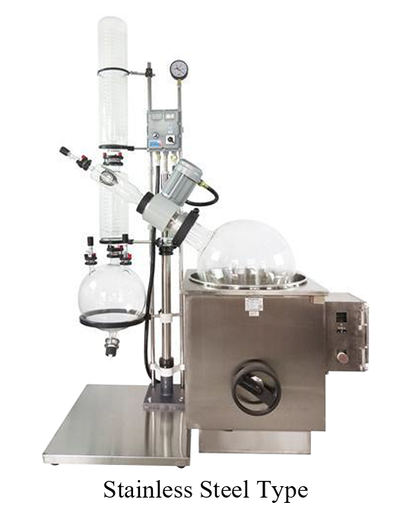

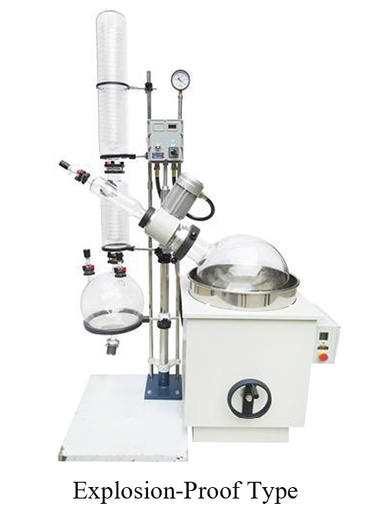

ExR5003 series explosion-proof/stainless steel rotary evaporator, 10-50L large capacity, high recovery efficiency with double condenser tubes, PTFE seal and corrosion resistance, manual lifting bath, suitable for explosion-proof and pilot-scale solvent evaporation scenarios.

Send E-mail Get Price

86-15688870591

cedric@cedriccn.com

Description

Product Features:

·304 stainless steel base plate. spray molded body combined with stainless steel bracket, The bath pot is manually raised and lowered

·The main and auxiliary serpentine double condensing tubes have a large condensing area and high recovery efficiency.

·PTFE composite seal, with air tightness up to extreme vacuum, corrosion resistance, strong acid and alkali resistance

Product Specification:

Model	R1002	R2003	R3002	R5003
Evaporation bottles	10L/F95	20L/F95	30L/F125	50L/F125
Collecting bottle	5L/Bottom discharge	10L/Bottom discharge	20L/Bottom discharge	20L/Bottom discharge
Cooling area	0.57(m²)	1(m²)	1(m²)	1.5(m²)
Speed	0-120(rpm)	0-120(rpm)	0-90(rpm)	0-90(rpm)
Evaporation rate	>3(L/h)	>5(L/h)	>5(L/h)	>9(L/h)
Vacuum reached	(Pa)<133Pa(1.33mbar,1Torr)
Bath power	4(kw)	4(kw)	6(kw)	6(kw)
Static temperature control range	Room temperature-99℃
Static temperature fluctuation	±1℃
SUS304 Bath pot	400*230(mm)	400*230(mm)	540*320(mm)	540*320(mm)
Power supply	220V	220V	220V	Standard 380V(Opfional220V)
Dimension(mm)	11006002000	12006002000	13007002500	13007002500
