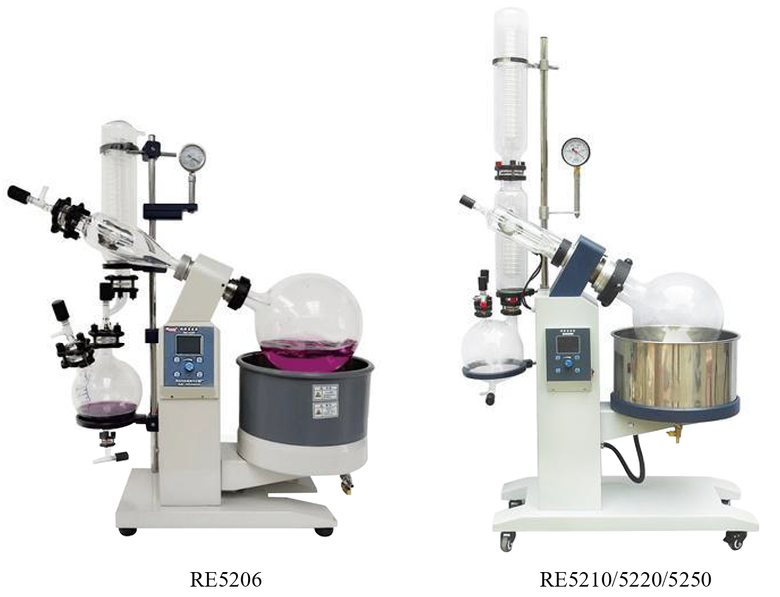

Rotary Evaporator RE5206/RE5210/RE5220/RE5230/RE5250

RE52 series large rotary evaporator, capacity 6-50L, electric lifting bath, digital display temperature control and speed control, PTFE seal and corrosion resistance, optional explosion-proof configuration, suitable for pilot-scale sample concentration and solvent recovery.

Send E-mail Get Price

86-15688870591

cedric@cedriccn.com

Description

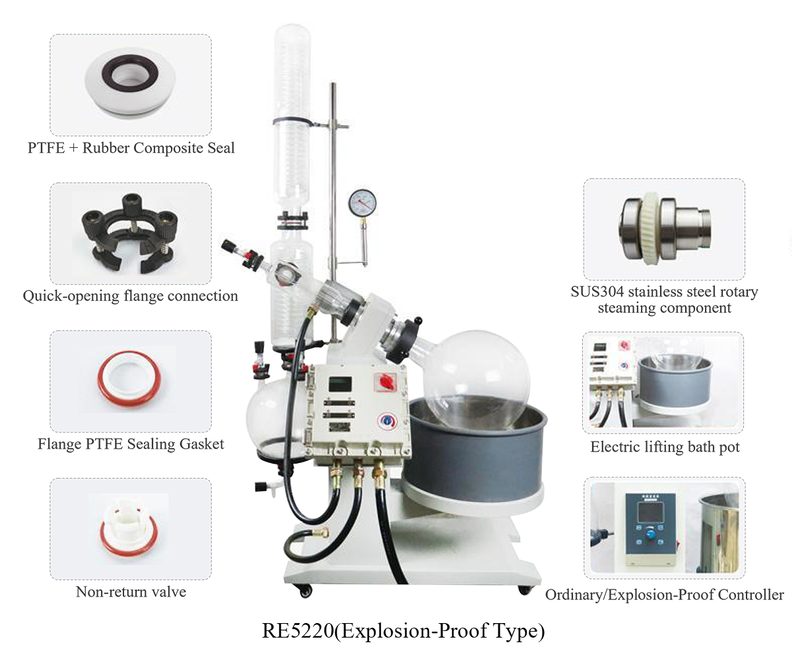

Product Features:

·Integrated spray molded body with 360° thread sliding angle wheel design for easy movement;The electric lifting of the bath pot is easy to operate.

·Intelligent temperature control LCD display,dual display and dual control of temperature and speed,with high temperature control accuracy.

·PTFE composite seal,with air tightness up to extreme vacuum,corrosion resistance,strong acid and alkali resistance.

Product Specification:

Model	RE5206	RE5210	RE5220	RE5230	RE5250
Rotary bottle	6L	10L	20L	30L	50L
Collection bottle	3L	5L	10L	20L	20L
Speed regulating range	100r/min	stat-up 120r/min		Stat-up 90r/min
Speed regulation method	Digital display,frequency control of speed
Motor power	Ordinary 140W.explosion-proof 280W
Condenser tube	Vertical	Vertical,main-cooling+secondary cooling High efficiency three reflux condenser pipe
Bath pot material quality	Stainless Steel
Bath pot inner container	φ280*170(mm)	φ400*230(mm)	φ400*230(mm)	φ540*320(mm)	φ540*320(mm)
Temperature control range	Room temperature-99℃ (optional 280 ℃ high-temperature oil bath)
Heating power	2(kw)	3(kw)	4(kw)	6(kw)	6(kw)
Temperature fluctuation	±1℃
Lifting mode	Electric lifting
Lifting stroke	0-180mm
Power supply	380V/50HZ
Vacuum reached	<-0098mpa
Dimension(mm)	8204001100	12506002100			13507802500
