This is a series of magnetic stirrers with a maximum rotation speed of 1500rpm and a maximum stirring volume of 20L. It adopts a ceramic coating panel, which is corrosion-resistant and easy to clean. Some models are equipped with brushless DC motors, and LCD/scale display is optional, adapting to the mixing needs of samples of different volumes in the laboratory.
86-15688870591
cedric@cedriccn.com

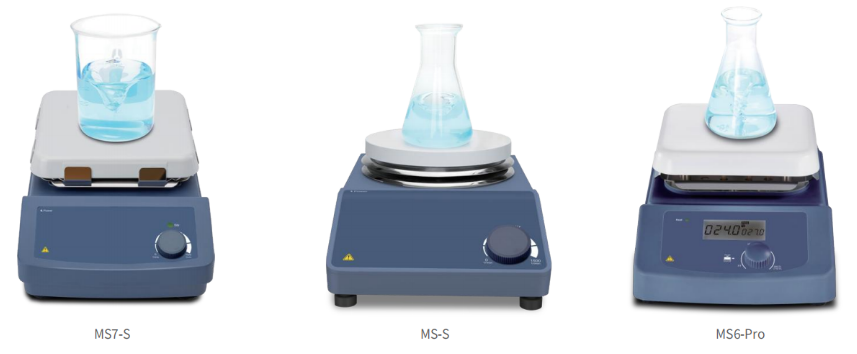

MS-S|MS7-S Introduction:
·Speed range of 0-1500 rpm.
·Maximum stirring quantity of H2O up to 10 L.
·Ceramic work plate provides excellent corrosion resistance.
MS6-Pro Introduction:
·High resolution LCD displays actual stirring speed.
·Brush less DC motor is maintenance free.
·Aluminum covered ceramic coating, corrosion resistant and easy to clean.
·Digital speed control up to 1500 rpm.
·Maximum stirring quantity of H2O at 5 L.
Product Specifications:
Model | MS-S-10L | MS-S-20L | MS-S-5L |
Work Plate Dimension (W*D) | 184*184 mm (7 inch) | Ø135 mm (5 inch) | 140*140 mm |
Work Plate Material | Glass ceramic | Stainless steel cover with ceramic | Aluminum cover with ceramic coating |
Motor Type | Shaded pole motor | Brush less DC motor | Brush less DC motor |
Stirring Positions | 1 | 1 | 1 |
Max. Stirring Quantity (H2O) | 10 L | 20 L | 5 L |
Max. Magnetic Bar (length) | 80 mm | 80 mm | 40 mm |
Speed Range | 0-1500 rpm | 0-1500 rpm | 200-1500 rpm |
Speed Display | Scale | Scale | LCD |
Protection Class | IP21 | IP21 | IP21 |
Motor Output Power | 1.5 W | 10 W | 1.8W |
Power | 30 W | 30 W | 10 W |
Voltage, Frequency | 100-120/200-240 V, 50/60 Hz | 100-240 V, 50/60 Hz | 100-240 V, 50/60 Hz |
Permissible Ambient Temperature And Humidity | 5-40℃, 80%RH | 5-40℃, 80%RH | 5-40℃, 80%RH |
Dimension (W*D*H) | 215*360*112 mm | 160*280*85 mm | 320*180*108 mm |
Packing size (W*D*H) | 490*350*260 mm | 470*250*240 mm | 470*250*240 mm |
Weight | 3.8 kg/6.5kg | 2.8 kg/3.5kg | 2.2 kg/4kg |
