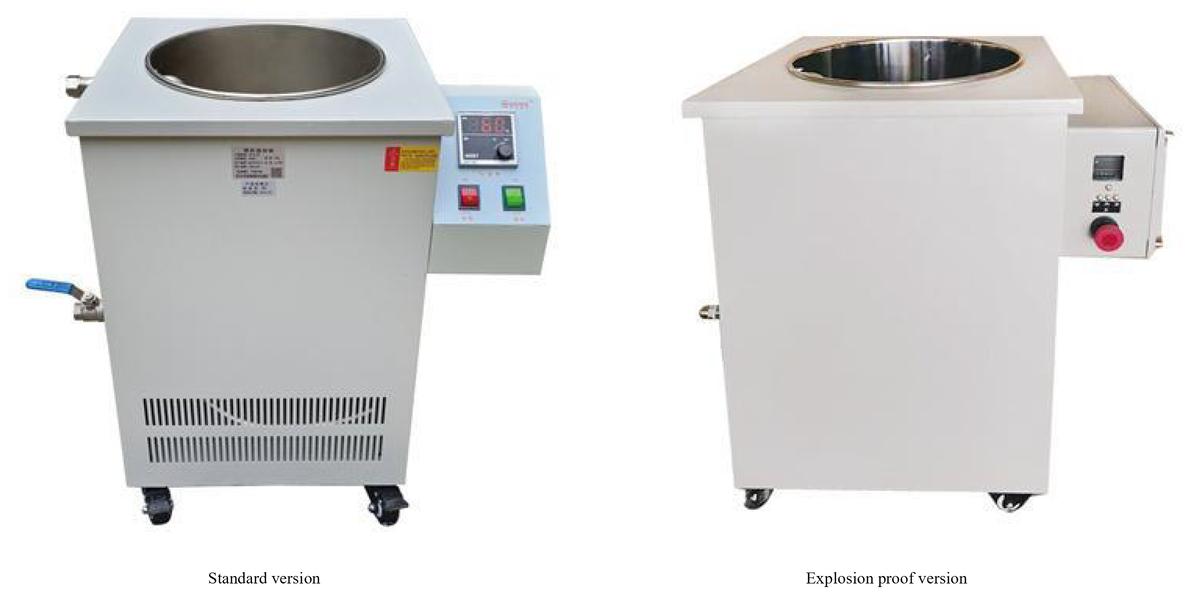

Adopting electric heating method, the circulating pump outputs thermal conductive medium to provide a heat source for the equipment to be heated. It can be used in conjunction with equipment such as glass reaction kettles and stainless steel reaction kettles.
86-15688870591
cedric@cedriccn.com
Product Specification:
Model | CYY-10 | CYY-20 | CYY-50 | CYY-80 | CYY-100 |
Liquid Storage Volume | 10(L) | 20(L) | 50(L) | 80(L) | 100{L) |
Heating Power | 2(kw) | 3(kw) | 4(kw) | 8(kw) | 12(kw) |
Rate of flow | 18.3(L/min) | ||||
Temperature control range | (Room temperature)-180℃/300℃(two options) | ||||
Temperature control error | ±2℃ | ||||
Power Supply | 220(V)/380(V),50Hz | ||||
Heat conductive oil viscosity | 500C ·S ·t the following | ||||
Circulation mode | External circulation | ||||
