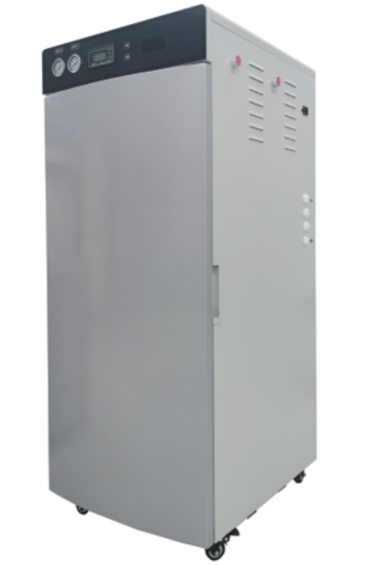

PRO-PLUS SERIES Ultra Pure Water System
PRO-PLUS SERIES Ultra Pure Water System

PRO-PLUS series ultrapure water system, water production capacity 150-250L/H, maximum resistivity 18.2MΩ·cm. Fully automatic microcomputer control, online monitoring of water quality and filter status, dual water quality outputs, optional low TOC/endotoxin removal configuration, suitable for high water consumption scenarios in large laboratories.

86-15688870591
cedric@cedriccn.com
Description


Application

PRO-PLUS-UP: physical&chemical test, blood inspection, flushing, biochemical, micro, HPLC. IC and GC analysis

PRO-PLUS-UP-V: atom absorption/emission mass spectrum analysis, TOC detection, environment monitoring biochip developing, micro organics analysis.

PRO-PLUS-UP-F: ICP/MS, PCR, PPT, isotope analysis, molecular biology, life science, disease control center.medicine and quality inspect institute, college research lab etc

PRO-PLUS-UP-VF: molecular biology, life science, gene study, cell culture, amino acid analysis, protein purify, medical inspection.


Product Features:

·Ergonomic design, the machine is beautiful and generous in compliance with GLP requirements.

·Fully automatic microcomputer control system, online water quality monitoring system, and filter element online monitoring

·New quick plug-in connector,filter column replacement and maintenance is more convenient for the electrical and water channels to be completely separated

·Fully automatic RO membrane anti-fouling washing program and regular washing program to prolong the service life of RO membrane.

·Power, water source, pump, flush, water shortage,full water status display,understand the machine running status.

·Floor-standing design, with movable and fixed feet at the bottom, making installation and movement more convenient.

·RO water, deionized water, two kinds of water outlets.

·Free TDS water quality test pen.

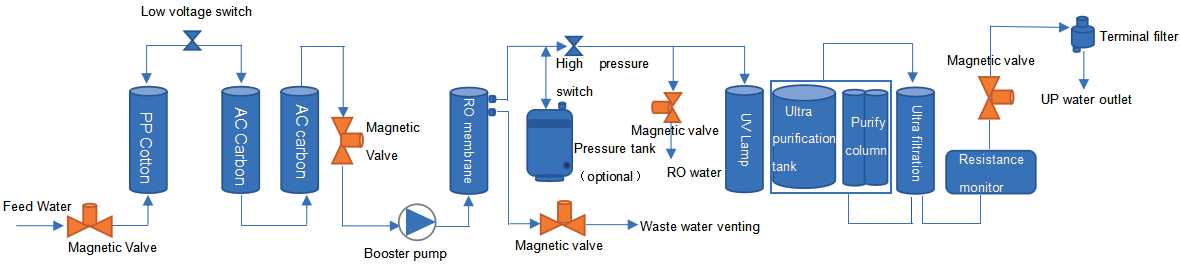

PRO-PLUS System filtering flow chart




Product Specification:

Model

Standard

Eliminating endotoxin

Low TOC

Synthesizing

PRO-PLUS-UP-150

PRO-PLUS-UP-F150

PRO-PLUS-UP-V150

PRO-PLUS-UP-VF150

PRO-PLUS-UP-200

PRO-PLUS-UP-F200

PRO-PLUS-UP-V200 P

RO-PLUS-UP-VF200

PRO-PLUS-UP-250

PRO-PLUS-UP-F250

PRO-PLUS-UP-V250

PRO-PLUS-UP-VF250

Process

PP+AC+AC+RO+UP

PP+AC+AC+RO+UP+ UF

PP+AC+AC+RO+UV +UP

PP+AC+AC+RO+UV +UP+UF

Output(25°℃)*

150L/H,200L/H,250L/H

Flow rate

Up to 2 liters/minute(with pressure tank)

Pure water outlet

2:reverse osmosis water,ultrapure water

Ultra pure water quality

Resistivity(25°℃)

18.2MΩ.cm

TOC*

<10ppb

<10ppb

<3ppb

<3ppb

Bacteria

<0.1cfu/ml

Particle(>0.22μm)

<1/ml

Endotoxin

N/A

<0.001Eu/ml

N/A

<0.001Eu/ml

RO water quality

lon rejection rate

95%-99%(new RO membrane)

Particles and bacteria rejection rate

>99%

Feed water requirements

Tap water,temperature:4-40°℃,pressure:1.054.0Kgf/cm2

Dimension and weight

Length×Width×Height:60×60×120cm/Weight:about 70Kg

Electrical requirements

AC110-240V,50/60Hz

Power

120-240W

Standard configuration

Main engine(including 1 set of purification column)+20 gallon pressure tank+accessory package
