CD-DI SERIES Deionized Water System
CD-DI SERIES Deionized Water System

Supply water for biochemical analyzer, microbial culture. chemical and biochemical reagent preparation,buffer preparation, photographic film rinsing, stability test chamber, meteorological equipment, hydrogen generator,battery filling,etc. It can replace the traditional single steaming, double steaming and triple distilled water machine

86-15688870591
cedric@cedriccn.com
Description

Product Features:

·Quick-insert filter element and quick connector make installation&maintenance much more safe and convenient.

·Humanized design that outward-raised preposed filter cartridge, which makes filter elements replacement more convenient

·Fully automatic microcomputer control,backlight LED large LCD screen, intuitive operating status, real-time display of 4.flushing, water making, water full, water lack and maintenance status.

·Sound and light alarm, stylish transparent window, simple and graceful, detachable panel for convenient maintenance.

·New environmental materials. With portable TDS test pen equipped.

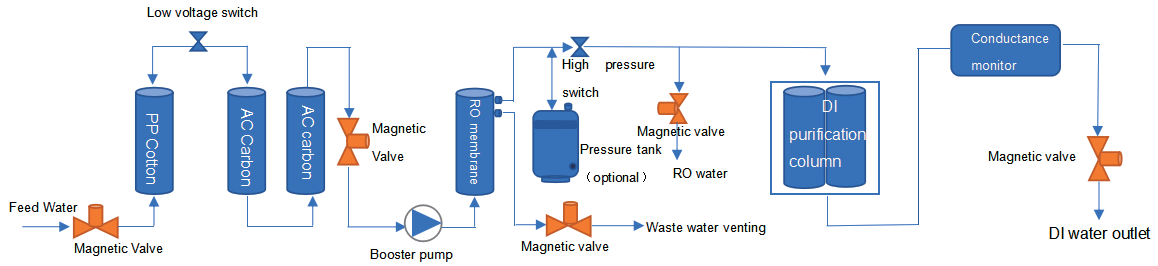

CD-DI Series filtering process:



Product Specification:

Model

CD-DI-10

CD-DI-20

CD-DI-30

Process

PP+AC+RO+DI

Output(25°℃)*

10/20/30L/H

Pure water outlet

2:reverse osmosis water,deionized water

Resistivity(25°℃)

10-16MΩ.cm(higher than laboratory type I water standard)

Conductivity

<0.1μm/cm

lon rejection rate

95-99%(with new ro membrane)

Ammonia

≤0.3μg/ml

Nitrate

0.06μgml

TDS(RO Water)

<10ppm

Particles and bacteria rejection rate

>99%

Feed water requirements

Tap water,temperature:5-45°℃,pressure:0.1-0.5Mpa

Dimension

L36*W20*H40cm

Power Supply

220V/50Hz

Power

48W

Standard configuration

Machine (including 1 set of purification column)+accessory package
