PRO-DI SERIES Deionized Water System
PRO-DI SERIES Deionized Water System

PRO-DI series deionized water system, water production capacity 40-120L/H, resistivity 10-16MΩ·cm. Fully automatic microcomputer control, online monitoring of water quality and operating status, dual water quality output, suitable for scenarios such as water supply for biochemical instruments and conventional chemical analysis.

86-15688870591
cedric@cedriccn.com
Description

PRO-DI-E Series Product Features:

·Fully automatic microcomputer controlled display, monitors power, water shortage, water, water full, flush, and strong flush control in real time.

·Fully automatic RO membrane anti-scaling and flushing procedures, as well as timed flushing procedures to extend RO membrane life

·Real-time online influent flow monitoring, influent water pressure monitoring, production water quantity monitoring.production water pressure monitoring

·Water quality online resistivity monitoring, online detection of various working conditions, real-time control of operating data.

·Floor-standing design with movable and fixed feet at the bottom for easier installation and movement.

·RO water, deionized water, two water outlets.

·Multiple safety protection, compact chassis and beautiful appearance.

·Present the portable TDS water quality test pen.

·Configure a large capacity purification tank.

·The front of the machine is equipped with a separate water intake end.

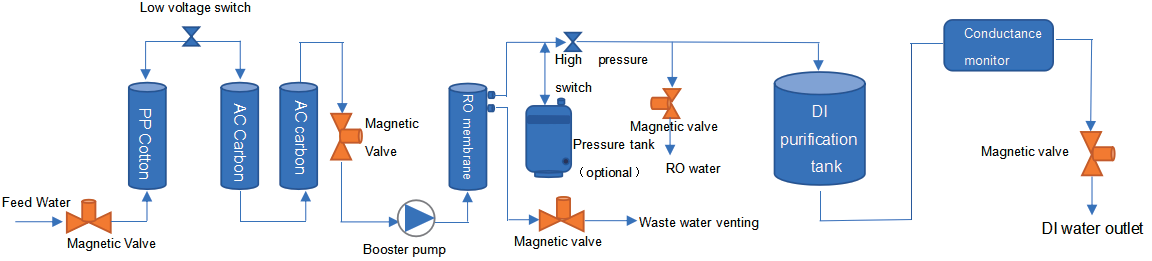

PRO-DI Series Filtering Process:



PRO-DI-S Series Product Features:

·Backlight LCD display. dual waterway online monitoring, which can simultaneously display RO conductivity value.UP or DI resistivity value and equipment operating status indication;

·Menu-type operation, which can modify and set multiple measurement parameters; with multiple operating status displays and indicator lights to promptly reflect the operating status of the equipment,high-pressure shutdown,low-pressure alarm, full water shutdown, etc.

·RO water Ultra-pure water water quality alarm warning prompt Automatic replacement of the filter element, you can set the water withdrawal time and take water regularly and quantitatively; touch the button to take the water, the RO UP water indicator will automatically prompt

·Floor-standing design, with movable and fixed feet at the bottom, making installation and movement more convenient.

·RO water, deionized water, two kinds of water outlets

·Multiple safety protection, exquisite chassis and beautiful appearance

·Free portable TDS water quality testing pen.

·Configure ultra-large capacity purification tank.

·The front of the machine is equipped with an independent water intake end.



Application

Suitable for automatic biochemical instrument water supply, general chemistry, biological histology. microbial analysis.sample dilution reagent preparation, water quality analysis, high performance liquid chromatography, photographic film processing, fine chemicals, etc.



Product Specification:

Model

PRO-E/S-DI-40

PRO-E/S-Dl-60

PRO-E/S-DI-80

PRO-E/S-Dl-100

PRO-E/S-DI-120

Process

PP+AC+AC+RO+DI

Output(25°℃)*

40/60/80/100/120L/H

Pure water outlet

2:RO water and deionized water

Conductance

<0.1μm/cm

Resistivity(25°℃)

10-16 MΩ.cm

Soluble organic matter rejection

>99%(molecular weight>100)

Inorganic lon rejection rate

96%

Particles and bacteria rejection rate

>99%

RO water TDS

<10ppm*Total salt rejection above 95%

Particulate matter rejection rate

>99%

Microbial retention rate

>99%

Feed water requirements

Tap water,TDS<200ppm,temperature:5-45°℃,pressure:1.0-4.0Kgf/cm2

Dimension and weight

L*W*H:52*50*108cm/Weight:about 75Kg

Power Supply

AC110-240V,50/60Hz/48-120W

Standard configuration

Machine (including 1set of purification column)+pressure tank(11G for below 100L/H,20G for above 100L/H)+accessory package
