CD-DIM SERIES Deionized Water System
CD-DIM SERIES Deionized Water System

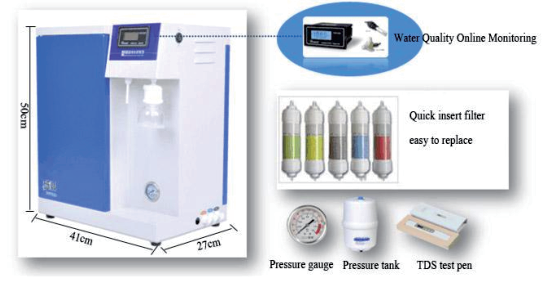

CD-DIM series deionized water system has a water production volume of 10-30L/H and a resistivity of 10-16MΩ·cm, exceeding the laboratory grade I water standard. Microcomputer automatic control, quick-plug filter column for easy maintenance, water and electricity separation design to prevent leakage, optional online monitoring and sound and light alarm, suitable for basic laboratory water use.

86-15688870591
cedric@cedriccn.com
Description



Product Features:

·Plastic spraying case, open the door at front and back.

·Filter element adopts open mold injection technology and built inside of case

·Quick-connect filter column is easy to replace and maintain.

·Microcomputer automatically control,humanized operation display system, backlight and LED LCD

·Water quality online monitoring ( optional)

·Automatic RO membrane anti-scaling flushing program, automatic stop when tap water cut off, automatic water break when machine stop

·The electrical and waterways are completely separated to avoid circuit failure caused by moisture and water leakage

·Visual operating status display, real-time show flushing, water making, water full, water lack and overhaul status

·Function of sound-light alarm. (optional)


Product Specification:

Model

CD-DlM-10

CD-DIM-20

CD-DIM-30

Process

PP+AC+AC+RO+DI

Output(25℃)

10/20/30L/H

Pure water outlet

2:reverse osmosis water,deionized water

Resistivity(25℃)

10-16MΩ.cm(higher than laboratory type I water standard)

Conductivity

<0.1μm/cm

lon rejection rate

95-99%(with new ro membrane)

Ammonia

≤0.3μg/ml

Nitrate

0.06μgml

TDS(RO Water)

<10ppm

Particles and bacteria rejection rate

>99%

Feed water requirements

Tap water,temperature:5-45°℃,pressure:0.1-0.5Mpa

Dimension

L41*2W7*H50cm

Power Supply

220V/50Hz

Power

48W

Standard configuration

Machine (including 1 set of purification column)+12L pressure barrel accessory package
