Accurate 96 real-time fluorescence quantitative QPCR CDQP-96

As a necessary choice for quantitative analysis of molecular biology, real-time PCR system has been widely used in various fields such as scientific research, clinical detection and diagnosis, quality and safety testing, and forensic applications.

Send E-mail Get Price

86-15688870591

cedric@cedriccn.com

Description

图层 2

图层 3

Product Features:

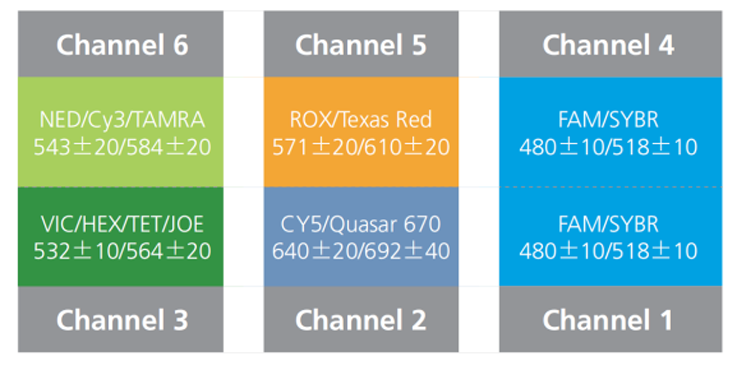

·Up to 6 fluorescence detection channels allowing multiplex PCR.

·Effectively reduce multi-color crosstalk and edge effect, no ROX correction required to reduce sample and reagent use

·Innovative scanning method and time-resolved signal separation technology to improve detection sensitivity

·Unique edge temperature compensation technology to minimize "edge effect"

·User-friendly software

·Innovative technology with long-lastig LED light provides reliability results

Product Specification:

Model:		CDQP-96
Temperature Control System			Detection System
Sample capacity	0.1ml PCR tubes×96, 8×12 PCR plate or 96 well plate ×1		Excitation light source	5/6 monochrome high efficiency LEDs
Reaction volume	10-50 μl		Detection device	PMT
Thermal cycle technology	Peltier		Detection mode	Time-resolved signal separating technology
Max. Heating/Cooling rate	6.0° C/s		Excitation/detection wavelength range	455-650nm/510-715nm
Heating temperature range	4 – 100 °C		Fluorescent channels	4/6 channels
Temperature accuracy	± 0.2°C		Supported dye	FAM/SYBR Green,VIC/HEX ROX,Cy5,Cy3(only for x6)
Temperature uniformity	±0.2℃ @60℃ , ±0.2℃ @95℃		Sensitivity	Single copy gene
Temperature gradient setting range	30–100°C		Resolution	1.33 folds copy number difference can be distinguished in single-plex qPCR
Temperature gradient difference setting range	1 – 36°C		Dynamic range	10 orders of magnitude copies
