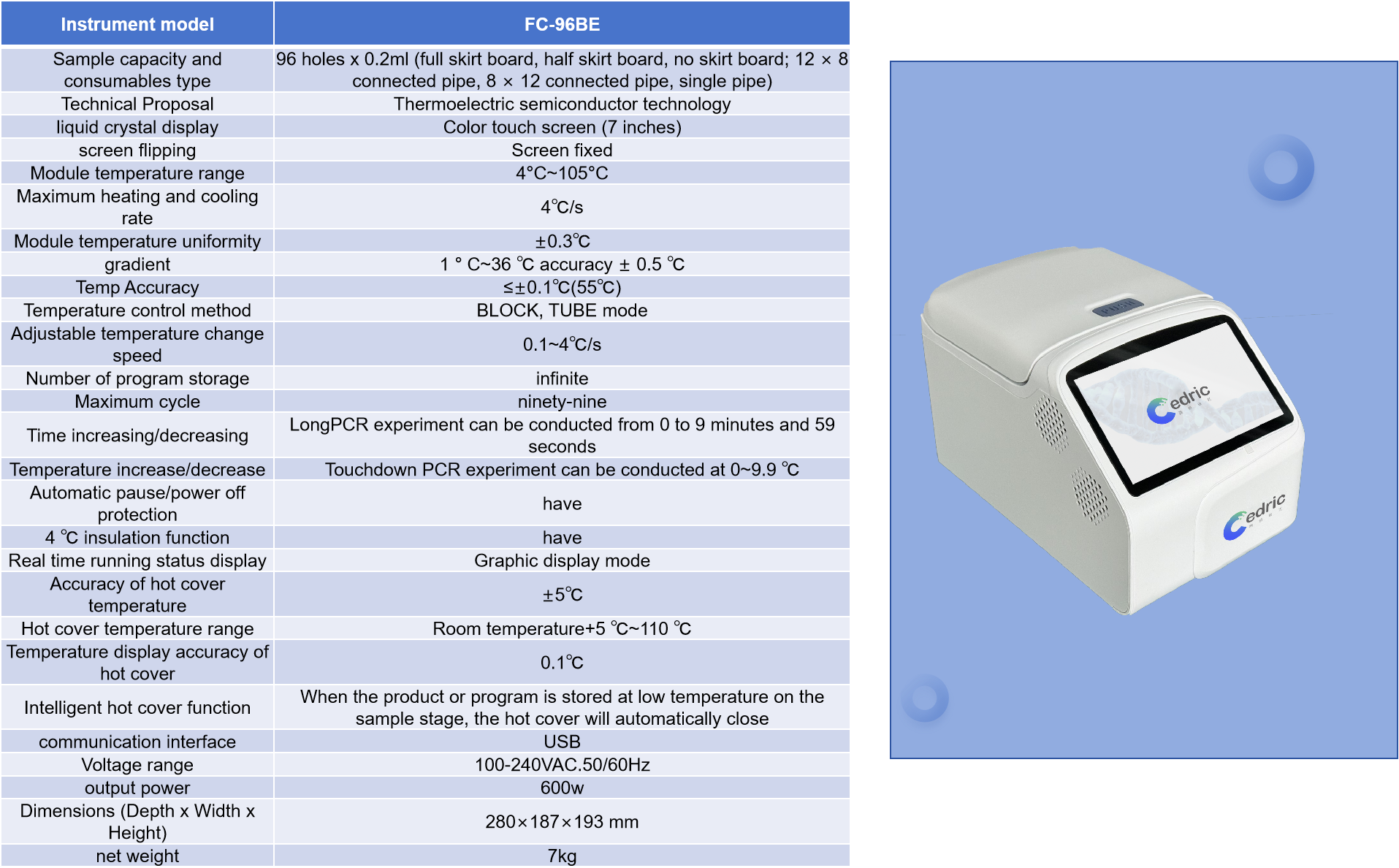

Sample Volume and Consumable Type

96 well×0.2ml (Full-skirted plate, half-skirted plate, Non-skirted plate;12×8 strip tubes, 8×12 strip tubes, Single tube )

Technology program

Thermoelectric semiconductor technology

Monitor

Color touch screen (7 inch)

Screen Adjustability

Fixed

Block temperature range

4°C~105°C

Maximum ramp rate

4℃/s

Temperature uniformity

±0.3℃

Gradient

36℃ max and accuracy is ±0.5℃

Temperature accuracy

≤±0.1℃(55℃)

Temperature control mode

Block mode, tube mode

Ramp rate adjusting range

0.1℃~4℃

Program capacity

Infinite

Maximum cycle

99

Time increase/decrease

0~9min59sec, long PCR is available

Temperature increase/decrease

0.1~9.9℃, touchdown PCR is available

Auto pause/ Power-off protection

Available

4℃ reservation

Available

Real-time operation status display

Graph-text

Hot lid temperature range

+5℃~110℃

Hot lid temperature display accuracy

0.1℃

Intelligent hot lid

Hot lid shut-off automatically when product is preserved at low temperature or program ends

Communication interface

USB

Voltage range

100-240VAC.50/60Hz

Output power

600w

Dimension(D×W×H)

280*187*193mm

Packing Size

350*250*250mm

Weight

7kg/9.5kg
