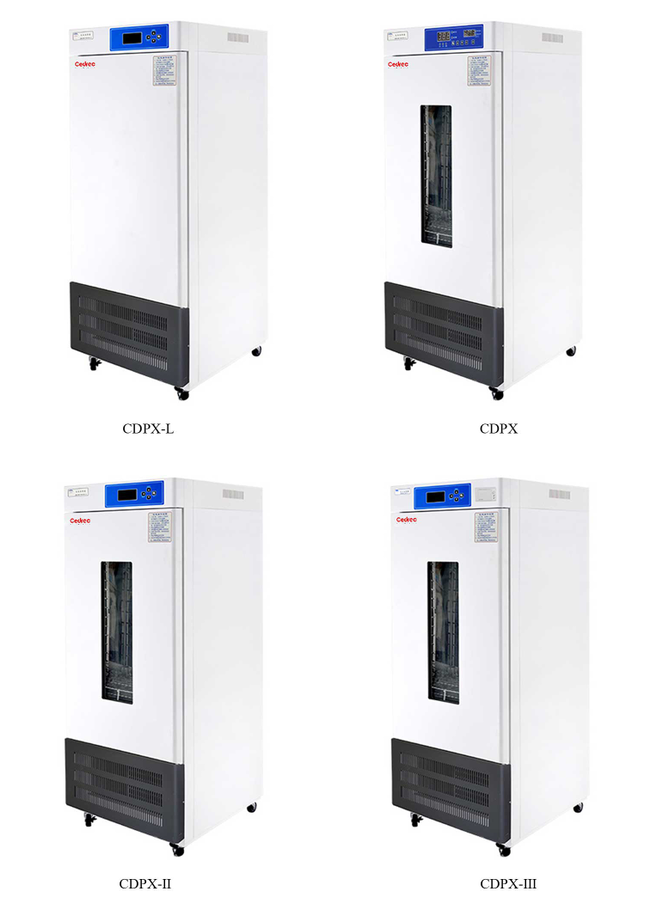

Biochemical Incubator CDPX CDPX-II CDPX-III CDPX-L
Biochemical Incubator CDPX CDPX-II CDPX-III CDPX-L

It is a special constant temperature equipment for water analysis and BOD determination, bacteria, mold, and preservation, microorganism cultivation, plant cultivation, and breeding tests.

86-15688870591
sales1@cedriccn.com
Description


Product Features:

·Outer box material: cold-rolled steel plate surface sprayed with plastic; Internal material: SUS304 stainless steel plate.

·The inner box is equipped with a fan to form a micro air circulation, improve the temperature uniformity inside the box.

·Microcomputer intelligent P.I.D temperature controller, accurate temperature control; Continuous operation or regular operation: 0~9999 min; With parameter memory function, the incoming call can automatically resume operation.

·The inner box is designed with a round arc structure, easy to clean.

·Pull-out movable shelves with adjustable spacing.

·The inner box is equipped with a lighting device for convenient observation (except CDPX-L).

·The box is equipped with a power socket, which can provide power for the BOD detection equipment, oscillator, and other small instruments installed in the incubator (except CDPX-L).

·CDPX-II and CDPX-L are equipped with RS485 communication serial ports; the CDPX-III is equipped with a miniature thermal printer.

·(Optional) Independent external temperature protection device.

·(Optional) Independent external temperature SMS alarm module (excluding data flow card), with mobile phone APP query function.

·(Optional) φ 35mm test hole.

·(CDPX-II, CDPX-L optional) RS485 to USB adapter.

·(CDPX-III optional) mini stylus printer.

·(CDPX-II, CDPX-III, CDPX-L optional) 30-segment program controller.


Product Specification:


Model

CDPX-80

CDPX-II-80

CDPX-III-80

CDPX-L-80

CDPX-150

CDPX-II-150

CDPX-III-150

CDPX-L-150

CDPX-200

CDPX-II-200

CDPX-III-200

CDPX-L-200

CDPX-250

CDPX-II-250

CDPX-III-250

CDPX-L-250

CDPX-300

CDPX-II-300

CDPX-III-300

CDPX-L-300

CDPX-400

CDPX-II-400

CDPX-III-400

CDPX-L-400

Temp. range

CDPX: 5℃ ~50℃ ; CDPX-II/CDPX-III: 0℃ ~65℃ ; CDPX-L: -10℃ ~65℃

Temp. uniformity

±2℃

Temp. fluctuation

CDPX: ±1℃ ; CDPX-II/CDPX-III/CDPX-L: ±0.5℃ ~ ±1

Internal circulation method

Breeze stirring

Temp. display accuracy

0.1° C

Temp. control accuracy

±0.1° C

Security alarm

Overtemperature alarm, Temp probe damage alarm

Controller

CDPX: LED, P.I.D control ;

CDPX-Ⅱ / / L: LCD, P.I.D control

Internal size ( mm)

400*370*550

450*420*850

450*450*1000

48*49*107

52*50*117

58*54*127

Internal volume (L)

81

160

202

251

304

397

External size ( mm)

540*580*1075

598*633*1471

590*659*1525

620*690*1595

660*702*1695

720*747*1795

Packing size

(Carton, mm)

650*700*1280

740*740*1640

800*720*1720

830*750*1800

790*820*1880

830*890*1990

Weight(kg)

87

117

125

137

155

168

Shelves

2

3

3

3

3

3

Power (W)

650

L: 760

710

L: 860

760

L: 940

810

L: 1000

960

L: 1100

1280

L: 1800

Power supply

220V 50Hz
