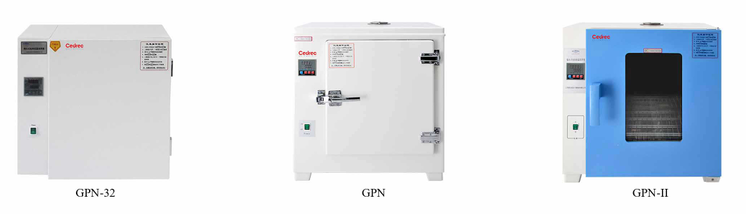

Electrothermal Thermostatic Incubator GPN-32/GPN/GPN-II
Electrothermal Thermostatic Incubator GPN-32/GPN/GPN-II

Constant temperature incubator can form a uniform, stable constant temperature environment in the box, suitable for microbial culture, seed germination and other constant temperature test, a wide range of applications. (Temperature set at 20~37℃ can be used to eliminate the crystallization phenomenon of mannitol solution.)

86-15688870591
sales1@cedriccn.com
Description


Product Features:

·Outer box material: cold-rolled steel plate surface sprayed with plastic; inner material: SUS304 stainless steel plate.

·Water jacket heating, occasional power outages can also maintain a constant temperature for a longer period of time, insulation is strong.

·There is an overflow device, which can effectively prevent the deformation of the water jacket

·GPN have glass inner doors and no outer door observation windows; GPN-II has no glass inner doors and outer door observation windows.

·Microcomputer P.I.D temperature controller, precise temperature control; continuous operation or scheduled operation: 0 ~ 9999min; has parameter memory function, and automatically resumes operation when a call is received.

·Pull-out movable shelves with adjustable spacing.

·(Optional) Independent external temperature protection device, (Optional)Independent external temperature SMS alarm module (data flow card not included), with mobile APP query function.


Product Specification:

Model

GPN-32

GPN-50

GPN-II-50

GPN-80

GPN-II-80

GPN-163

GPN-II-163

GPN-270

GPN-II-270

Temperature range

RT+5-60℃

Temperature uniformity

≤ ±1℃ (Optional≤ ±0.5)

Temperature fluctuation

≤ ±0.5℃ (Optional≤ ±0.3)

Heating method

Three sides water jacket, Bottom heating

Internal circulation method

Natural convection

Security alarm

Overtemperature alarm, Temperature probe damage alarm

Controller

LED display, P.I.D

Internal size (W*D*H, mm)

300*300*350

352*380*402

402*430*502

502*530*652

602*630*752

Internal volume (L)

31

53

86

173

285

External size (W*D*H, mm)

560*410*557

608*555*614

600*595*602

658*605*714

650*645*712

758*705*874

750*745*862

858*805*974

850*845*962

Packing size(Carton, mm)

680*520*720

720*670*760

760*720*860

860*830*1010

980*920*1120

Weight(kg)

42

51

65

88

115

Shelves

2

2

2

3

3

Power (W)

120

330

440

660

770

Power supply

220V 50Hz
