CD-UPW series ultrapure water system adopts RO+UP process, with a maximum resistivity of 18.2MΩ·cm and an output of 10-30L/h. Online real-time monitoring of water quality, automatic flushing to prevent scaling, dual water quality output, suitable for different scenarios such as routine experiments, HPLC, and molecular biology.
86-15688870591
cedric@cedriccn.com
Application：
CD-UPW: physical&chemical test, blood inspection,flushing, biochemical, micro, HPLC, IC and GC analysis.
CD-UPW-V: atom absorption/emission mass spectrum analysis, TOC detection, environment monitoring, biochip developing, micro organics analysis.
CD-UPW-F: ICP/MS, PCR, PPT, isotope analysis, molecular biology, life science,disease control center, medicine and quality inspect institute, college research lab etc.
CD-UPW-VF: molecular biology, life science.gene study,cell culture, amino acid analysis, protein purify, medical inspection.
Product Features:
·Suitable for national water quality, the case adopts plastic spraying technology.
·All the filter elements in the system adopt mold opening and injection molding technology and are builtin the chassis
·Quick insert cartridges make replacement and maintenance convenient.
·Complete separation of electrical appliances from waterways to avoid circuit failures caused by moisture and water leakage
·Water quality online monitoring system, real-time measure water quality.
·Automatic RO film anti-scaling flushing program,automatic stop when tap water is cut of. automatic fill water in storage bucket, automatic stop when bucket water is full.
·Equipped with portable TDS pen,test TDS content,conductance and water temperature anytime and anywhere.
·Double electric water intake, two kinds of water quality, ready to use
·Front and back door design, easy and fast filter element replacement, the whole process without using any tools,easy to complete the filter element replacement.

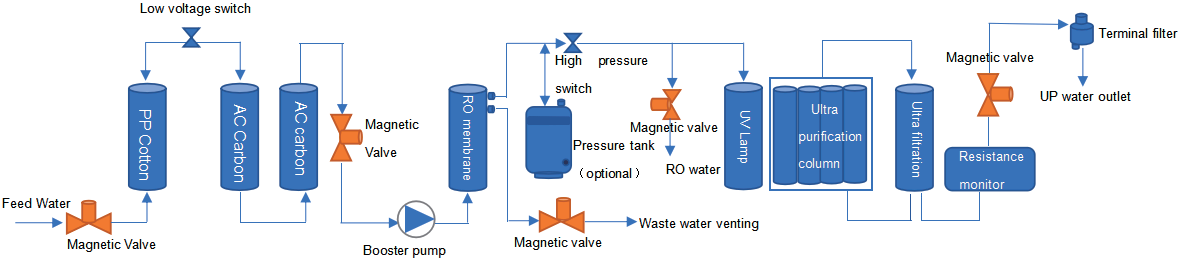

CD-UPW Series Filtering Flow Chart
(The highest configuration CD-UPW-VF for reference)
Product Specification:
Model | Standard | Eliminating endotoxin | Low TOC | Synthesizing |
CD-UPW-10 | CD-UPW-F10 | CD-UPW-V10 | CD-UPW-VF10 | |
CD-UPW-15 | CD-UPW-F15 | CD-UPW-V15 | CD-UPW-VF15 | |
CD-UPW-20 | CD-UPW-F20 | CD-UPW-V20 | CD-UPW-VF20 | |
CD-UPW-30 | CD-UPW-F30 | CD-UPW-V30 | CD-UPW-VF30 | |
Process | PP+AC+AC+RO+ UP+TF | PP+AC+AC+RO+UP+U F+TF | PP+AC+AC+RO+ UV+UP+TF | PP+AC+AC+RO+U V+UP+UF+TF |
Output(25℃)* | 10L/H,15L/H,20L/H,30L/H | |||
Flow rate | Up to 2 liters/minute(with pressure tank) | |||
Pure water outlet | 2:RO water,ultra-pure water | |||
Ultra pure water quality | ||||
Resistivity(25℃) | 18.2MΩ.cm | |||
TOC* | <10ppb | <10ppb | <3ppb | <3ppb |
Bacteria | <0.1cfu/ml | |||
Particle(>0.22μm) | <1/ml | |||
Endotoxin | N/A | <0.001Eu/ml | N/A | <0.001Eu/ml |
RO water quality | ||||
lon rejection rate | 95%-99%(new RO membrane) | |||
Particles and bacteria rejection rate | >99% | |||
Feed water requirements | Tap water,temperature:5-45℃,pressure:0.15-0.4Mpa | |||
Dimension and weight | L*W*H:41×27×50cm/Weight:about 23KGS | |||
Electrical requirements | AC110-240V,50/60Hz | |||
Power | 48-72W | |||
Standard configuration | Machine (Including 1 set of cartridge)+12 liters pressure tank+terminal filter+accessories package | |||
