W8600 WE multi-function bonding machine, closed-loop pressure control + temperature compensation, suitable for gold wire/aluminum wire/platinum wire bonding, supports microwave chips, MEMS and other devices, 10-inch touch screen operation, stable and efficient.
86-15688870591
cedric@cedriccn.com
Product Highlights

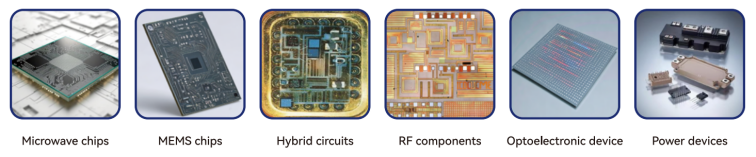

Application Fields

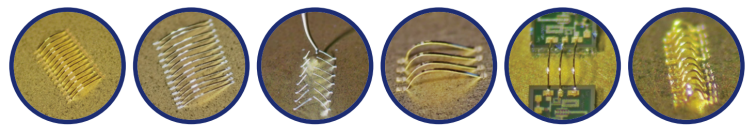

Application Effects
Technical Parameters
Items | Parameters |
Welding Wire Type | Gold wire(15~100μm)、aluminum wire(18~100μm)、platinumwire (18~25μm)、gold ribbon(12.7*50μm~25.4*300μm) |
Z-Axis Travel | 19mm |
Capillary Length | 16mm/19mm/25mm |
Bonding Force | 0～255g |
Ultrasonic | 10W |
Lifting Platform | 268mm*272mm |
LCD | 10-inch |
Wire Spool | 1/2-inch、2-inch |
Wire Feeding Method | 90°、45° |
Clamping table temperature range | RT~200℃ |
Standard Equipment | Bonding machine、1/2-inch wire spool、Stereo Microscope、LED Ring Illuminator、Head Clamp Stage(with PID Controller 200℃) |
Installation Requirements
Items | Parameters |
Input Voltage | 220V@50Hz |
Rated Power | 0.4~0.8Mpa |
Dimension | 1300mm(L)*1250mm(W)*1690mm(H) |
Weight | 1000Kg |
