Welding Wire Type

Gold wire (15~100μm), aluminum wire (18~100μm), platinum wire (18~25μm), gold ribbon (12.7*50μm~25.4*300μm)

Z-Axis Travel

19mm

Capillary Length

16mm/19mm/25mm

Bonding Force

0~255g

Ultrasonic

10W

Lfting Platform

268mm*272mm

LCD

10-inch

Wire Spool

1/2-inch, 2-inch

Wire Feeding Method

90°、45°

Welding mode

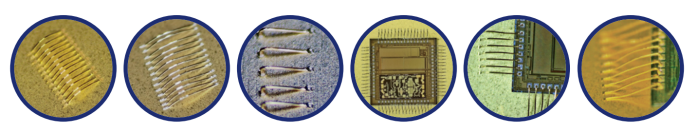

Welding、 ball bonding、 solder ball placement、 BBOS (Bond Ball On Stitch), BSOB (Bond Stick On Ball)

Clamping table temperature range

RT~200℃

Standard Equipment

Bonding Machine, 1/2-inch Wire Spool, Stereo Microscope, LED Ring Illuminator, Head Clamp Stage (with PID Controller 200℃)

Input Voltage

220VAC±10%@50Hz

Rated Power

500W

Dimension

610mm(L)*595mm(W)*355mm(H)

Weight

48Kg
